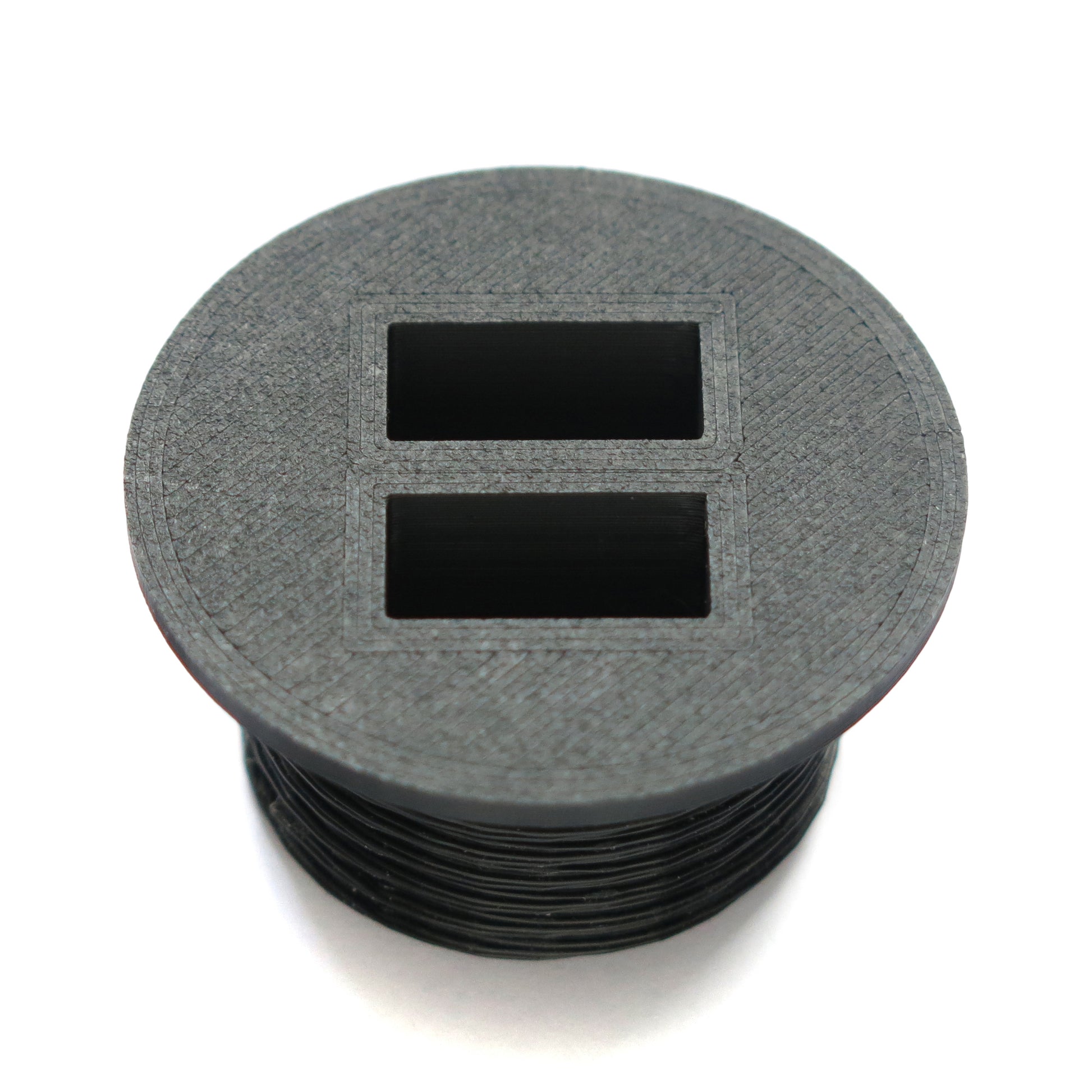

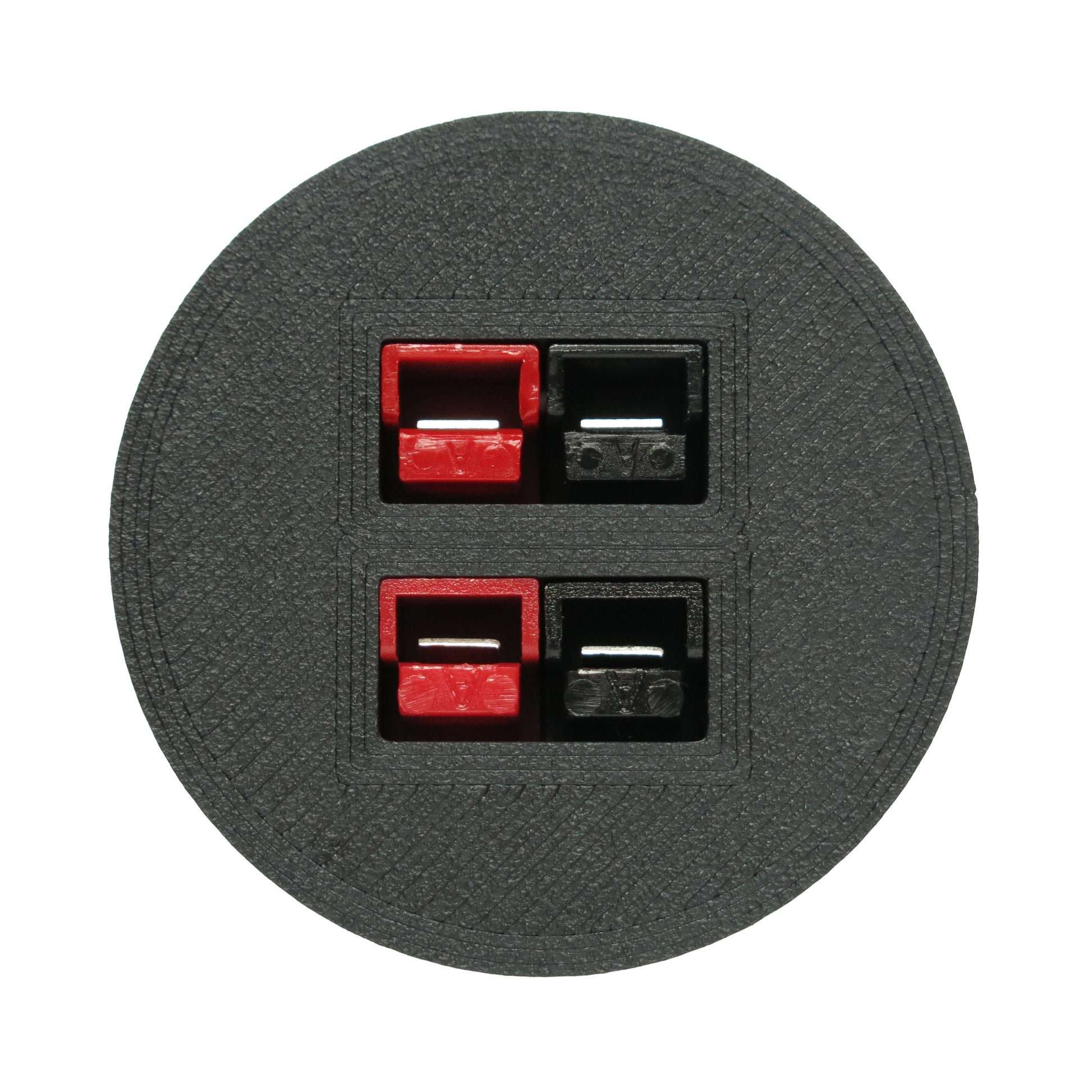

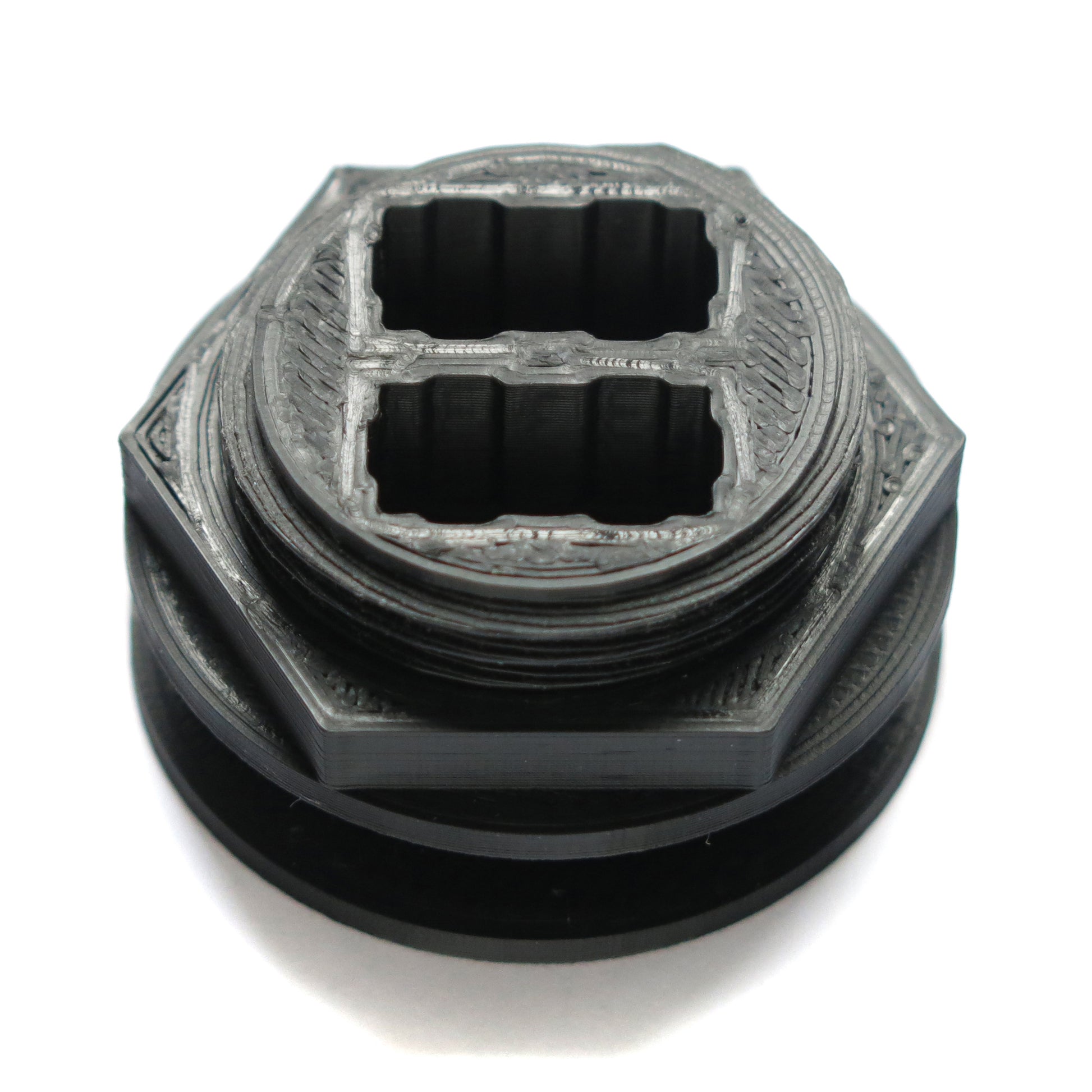

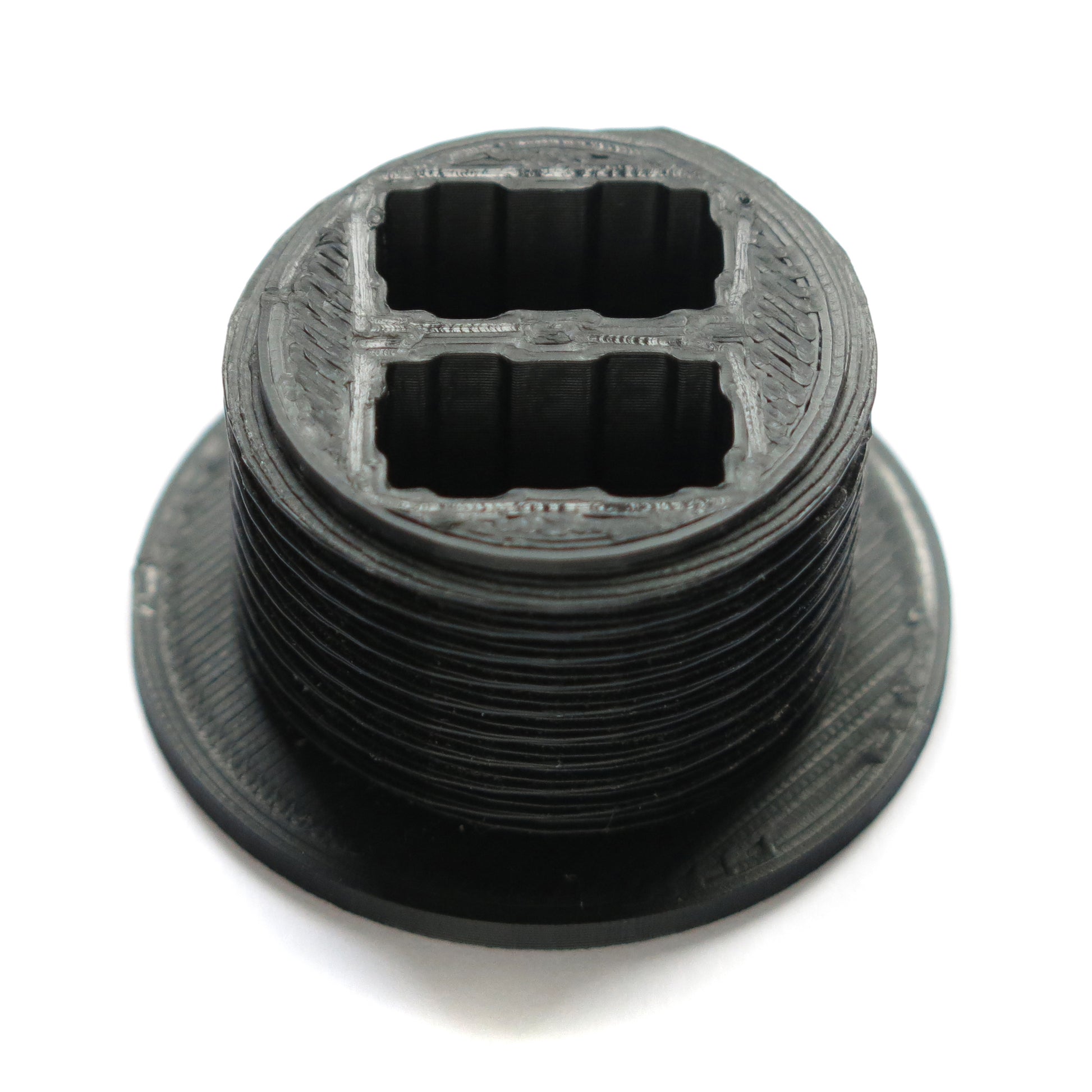

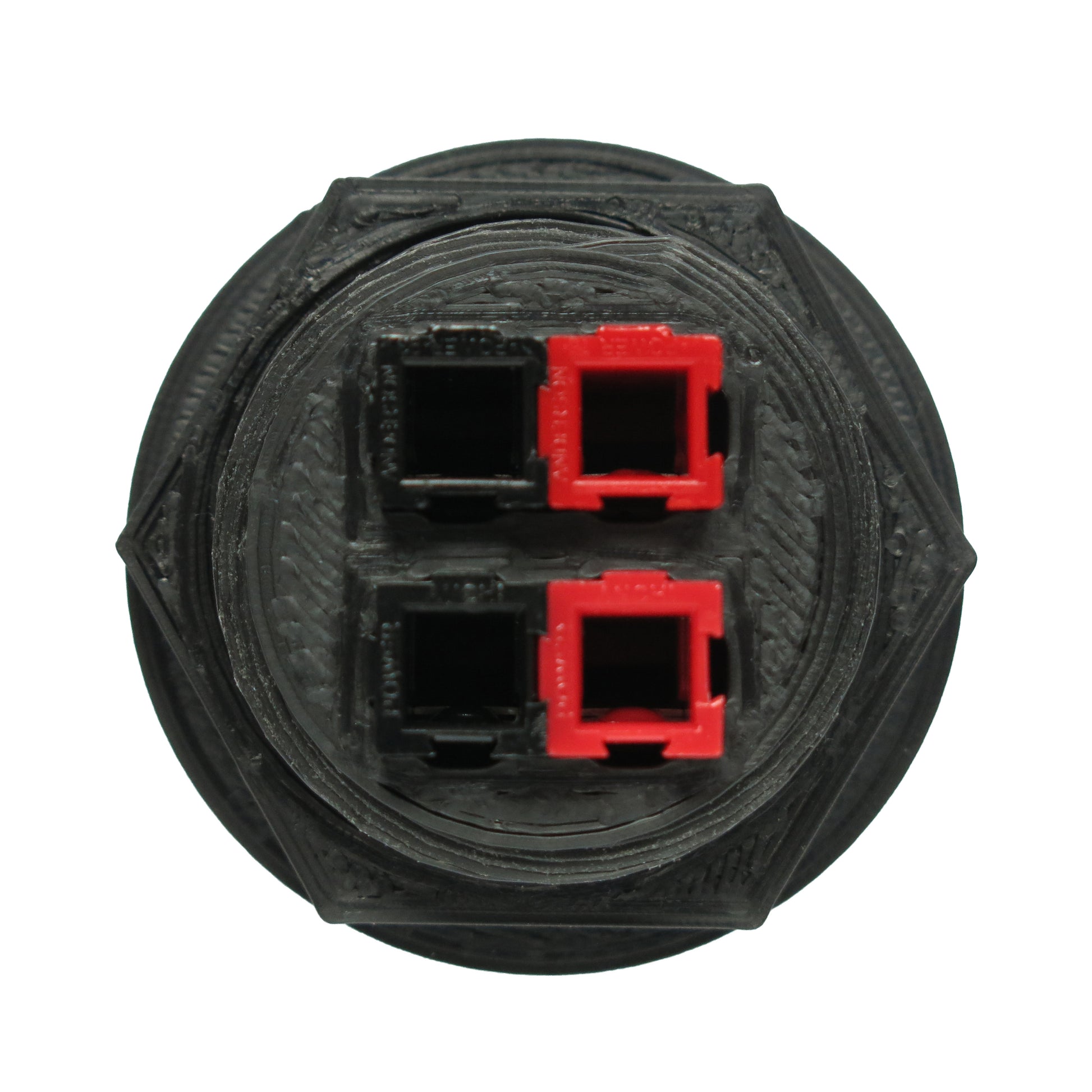

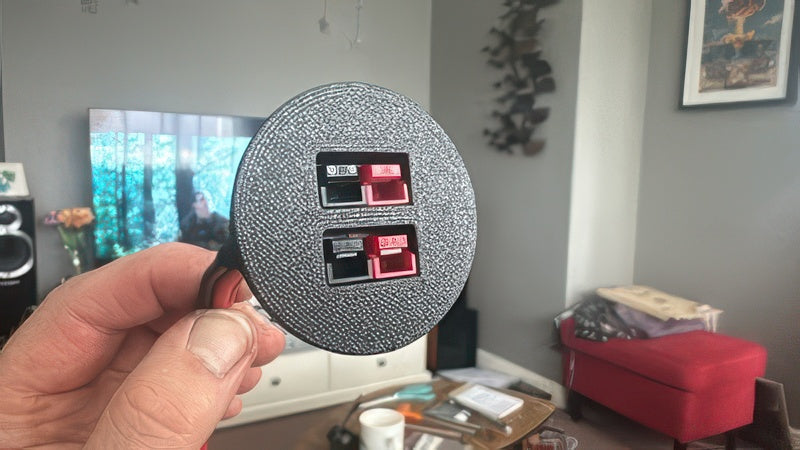

This threaded panel mount allows you to mount two pairs of Anderson Powerpole PP15, PP30 or PP45 connectors in a variety of places.
Specifications
Fitting - Panel mount fits a 32mm hole (commonly available hole saw size).
Maximum panel thickness - 13mm.
Front face diameter - 42mm
Easy installation - Finger tightening is sufficient in most circumstances. If required, the retaining nut can be tightened with a spanner or adjustable wrench. Please bear in mind that the threads are made from plastic, so be careful not to overtighten.

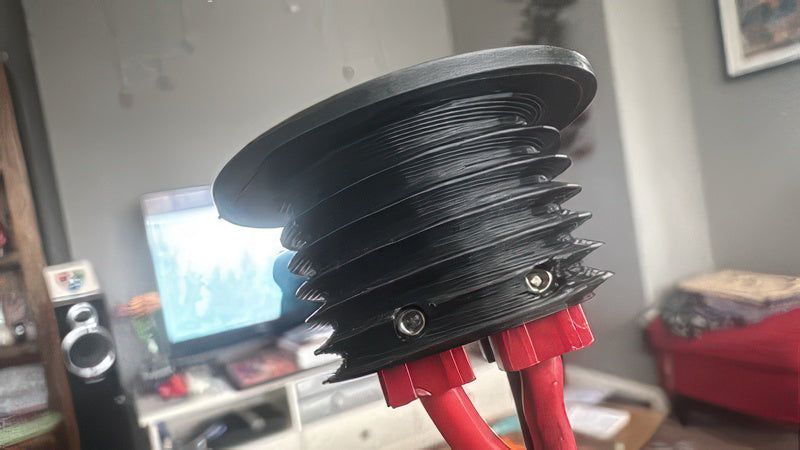

Includes two retaining set screws (M3x5) to secure and prevent movement of the connector. The set screws require a 1.5mm hex key to tighten them (not included).
Versatile - Can house either PP15, PP30 or PP45 connectors.
Material - 3D printed using PLA.
Listing Includes

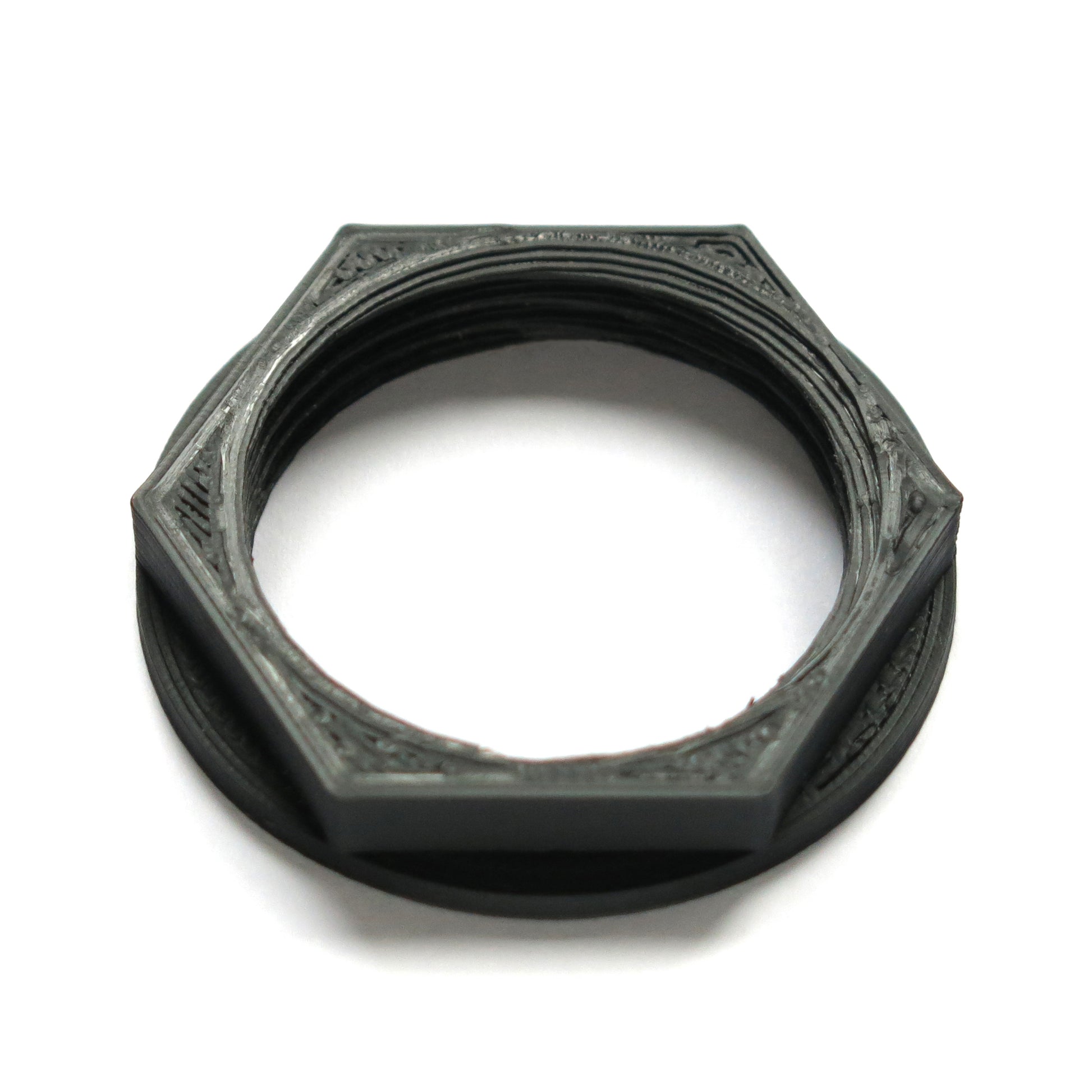

1x 2-Way panel mount fitting for Anderson Powerpole connectors. 1x securing nut. 2x connector retaining set screws (already installed).
