4-Way Threaded Panel Mount Housing for Anderson Powerpole Connector PP15 PP30 PP45

4-Way Threaded Panel Mount Housing for Anderson Powerpole Connector PP15 PP30 PP45

Regular price £12.45 GBP
Regular price Sale price £12.45 GBP
Sale Sold out
Shipping calculated at checkout.

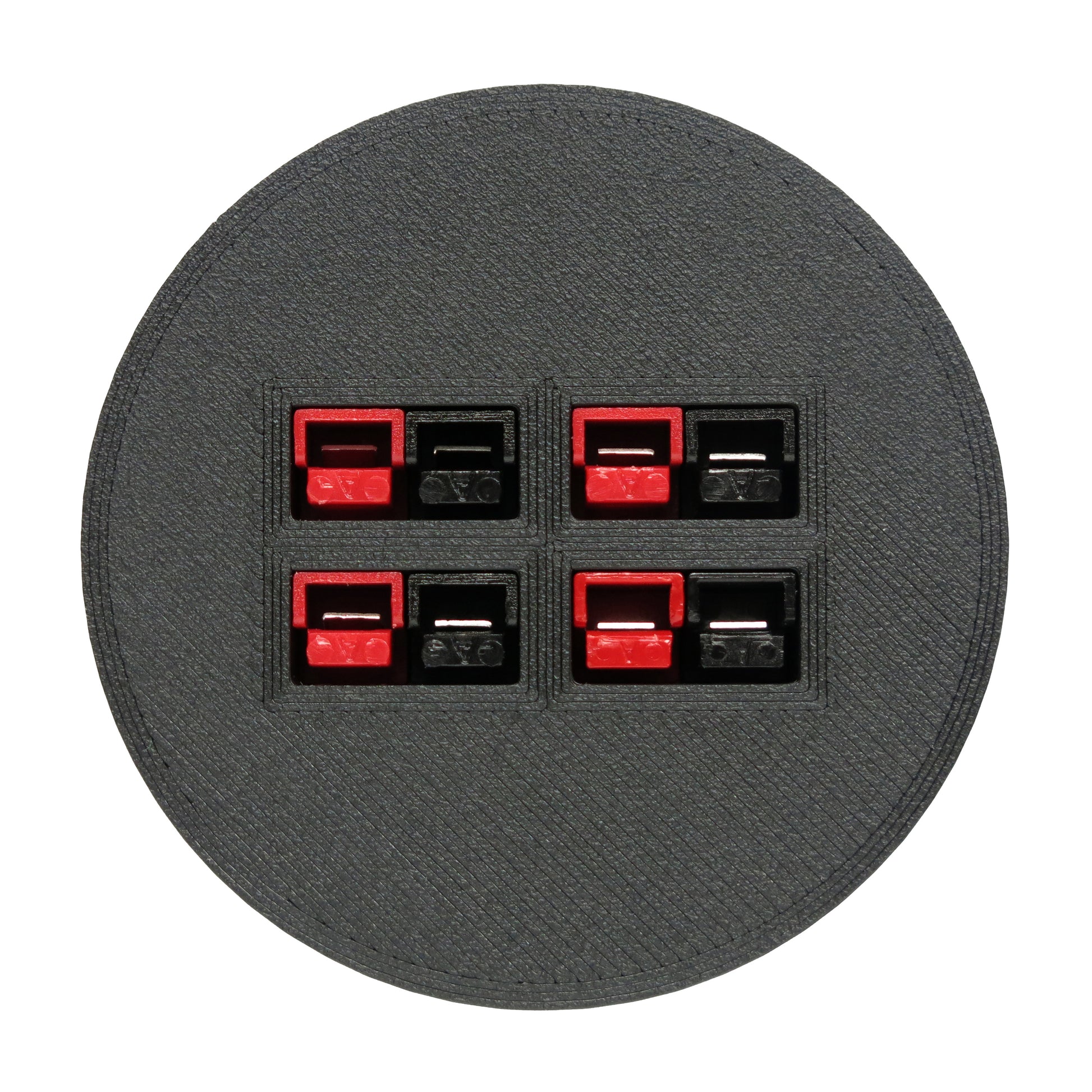

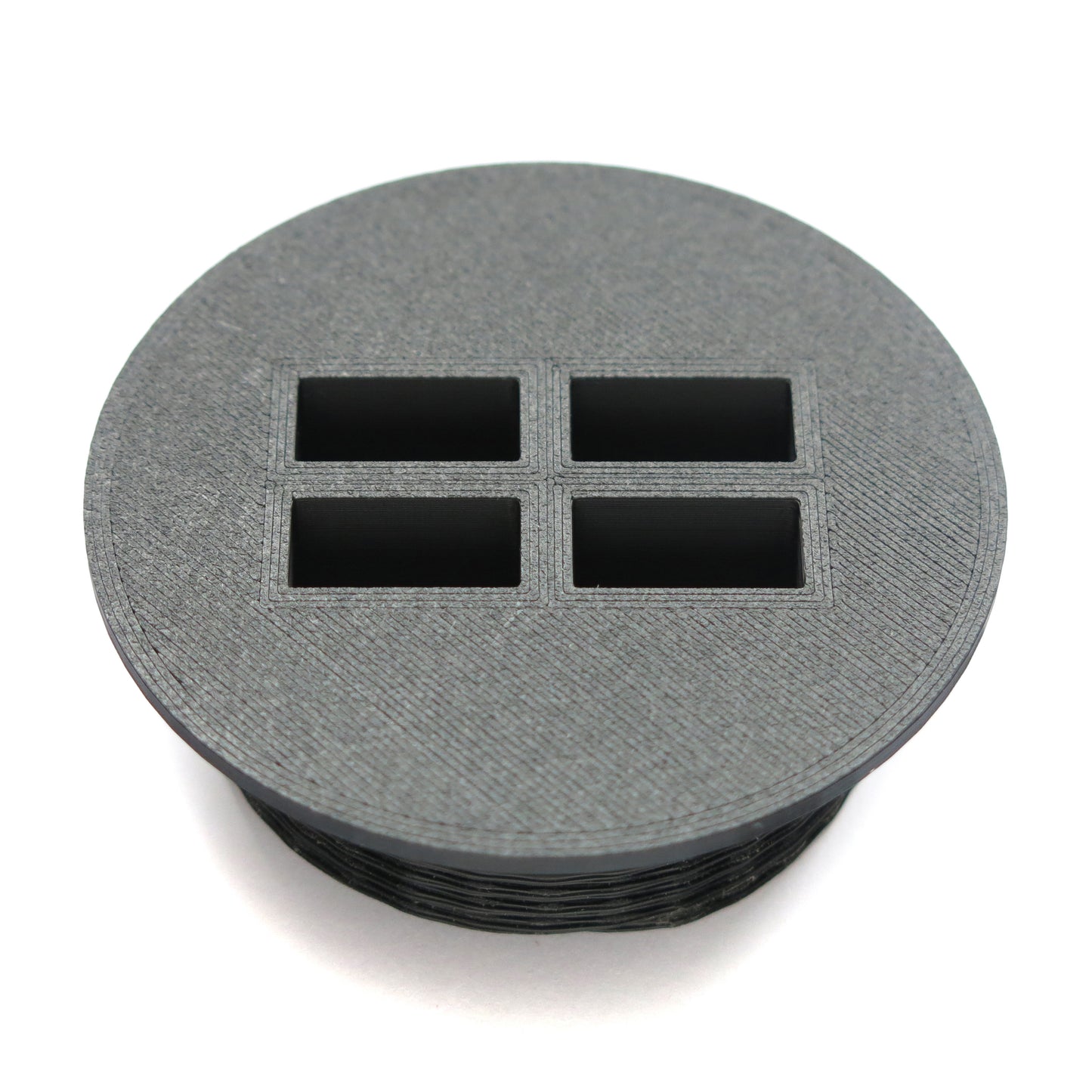

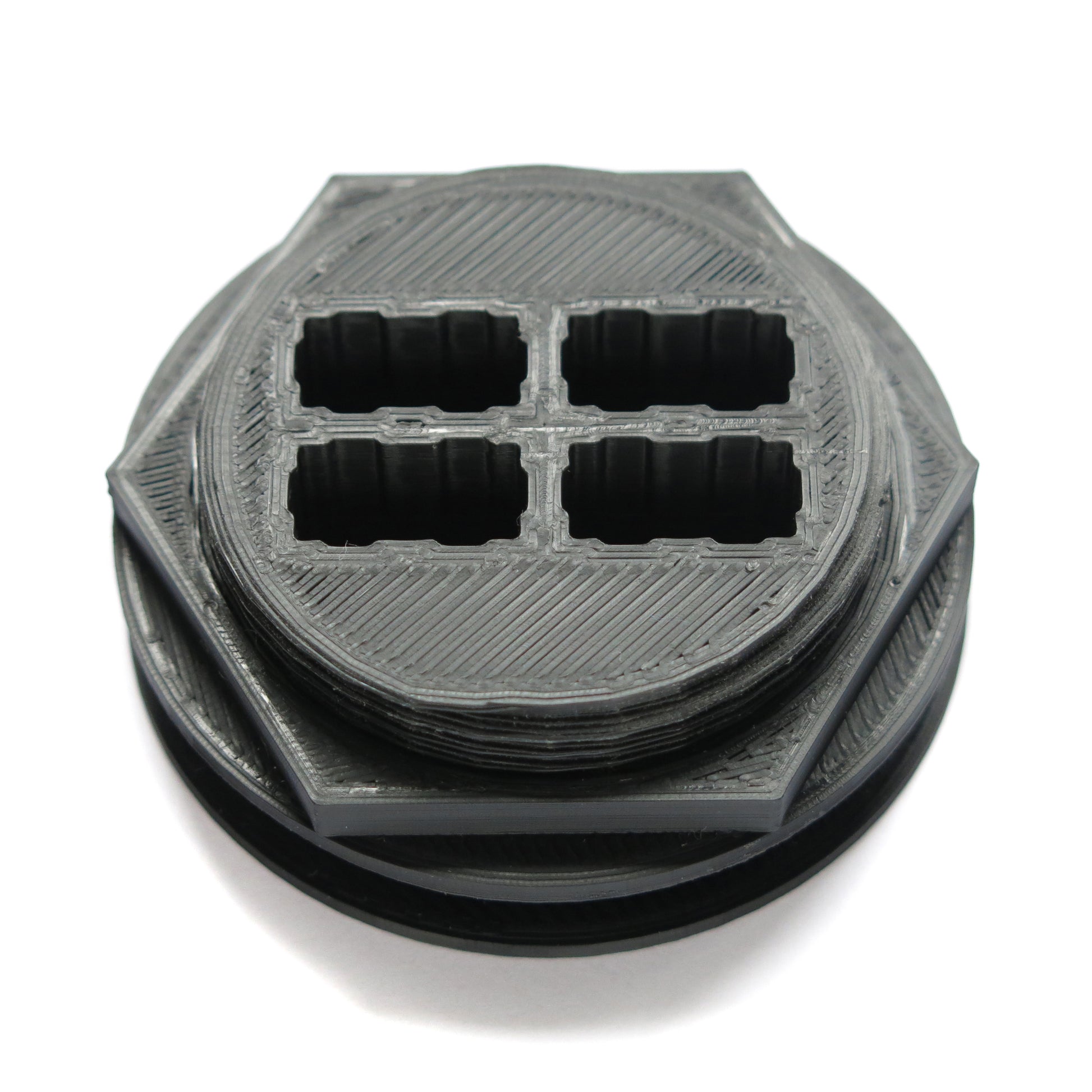

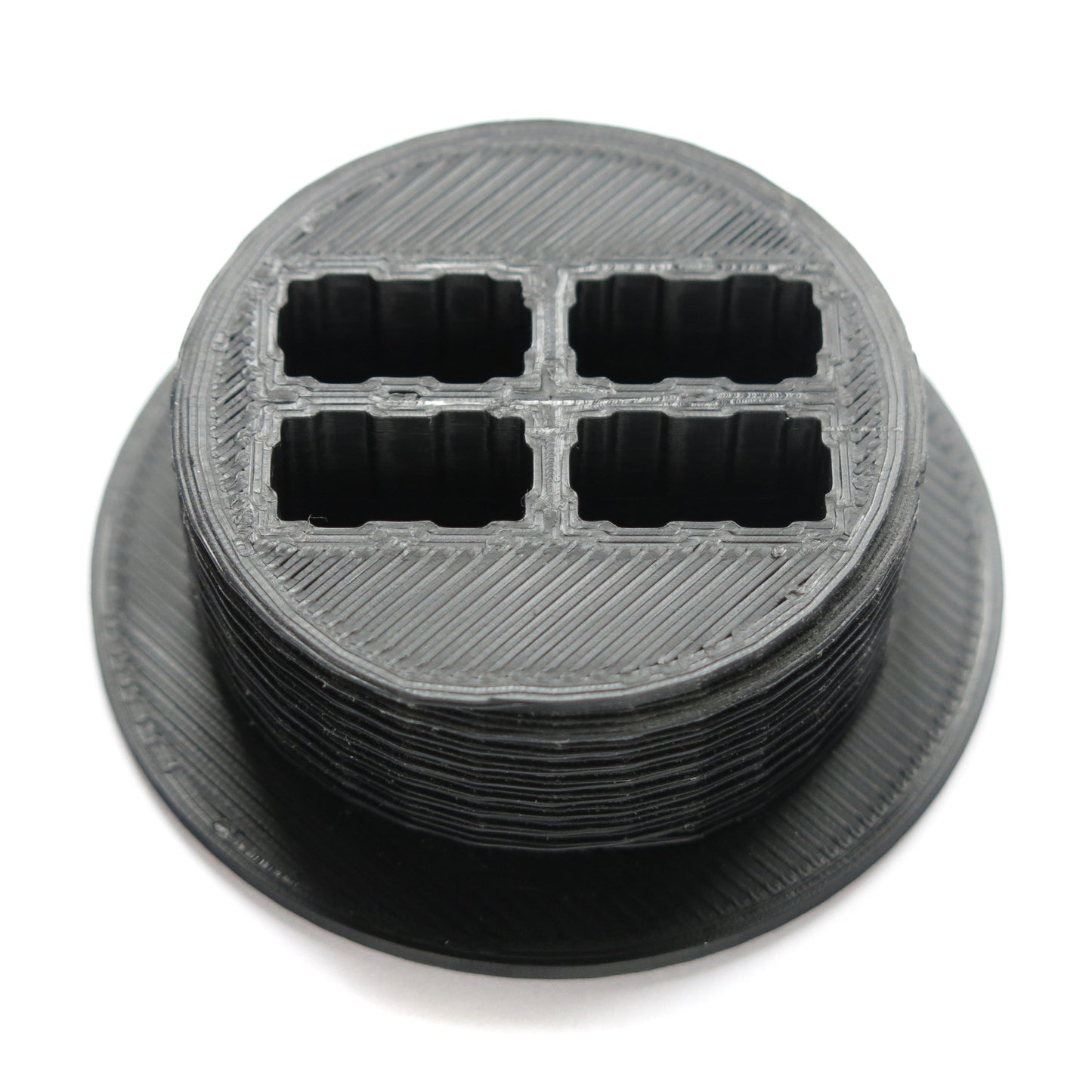

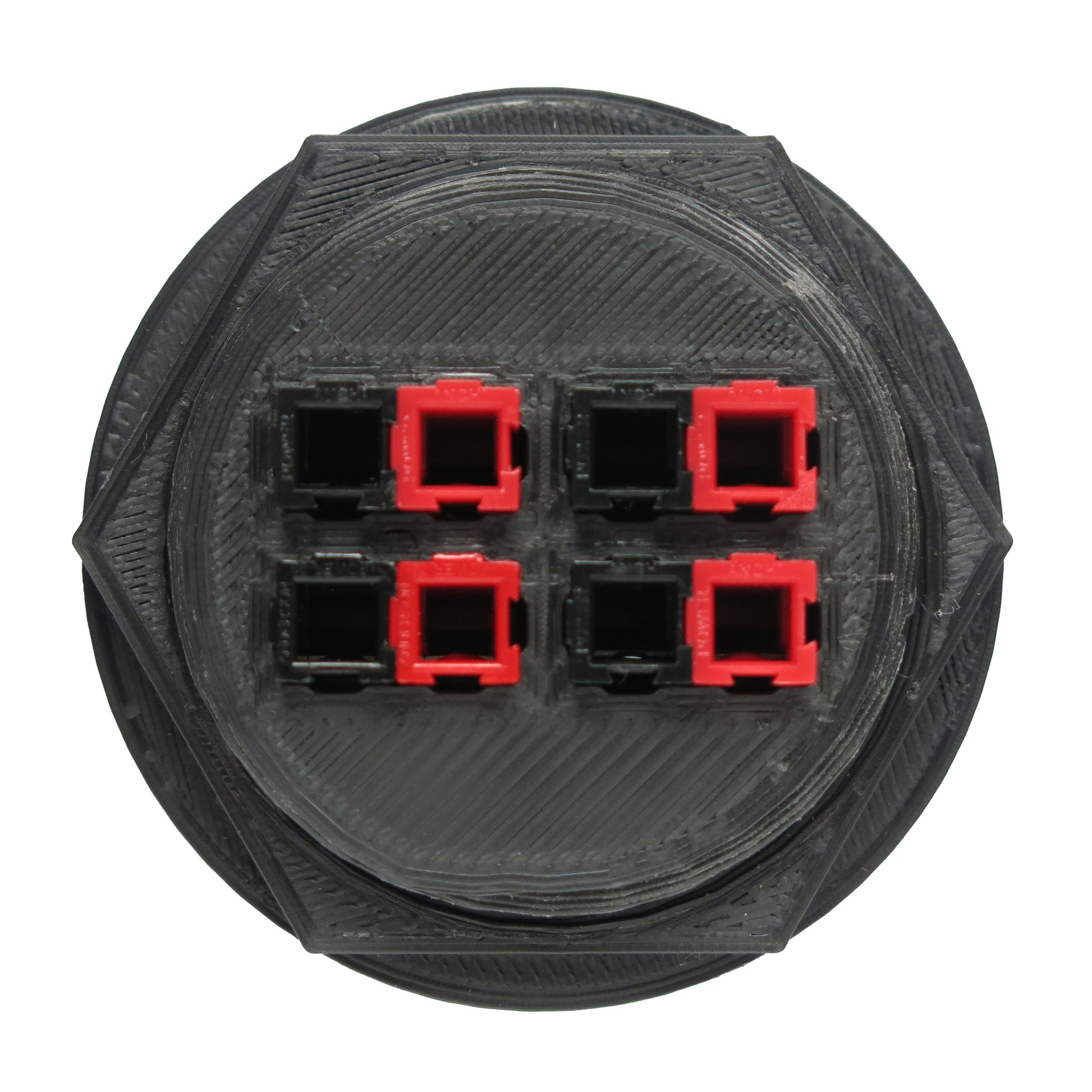

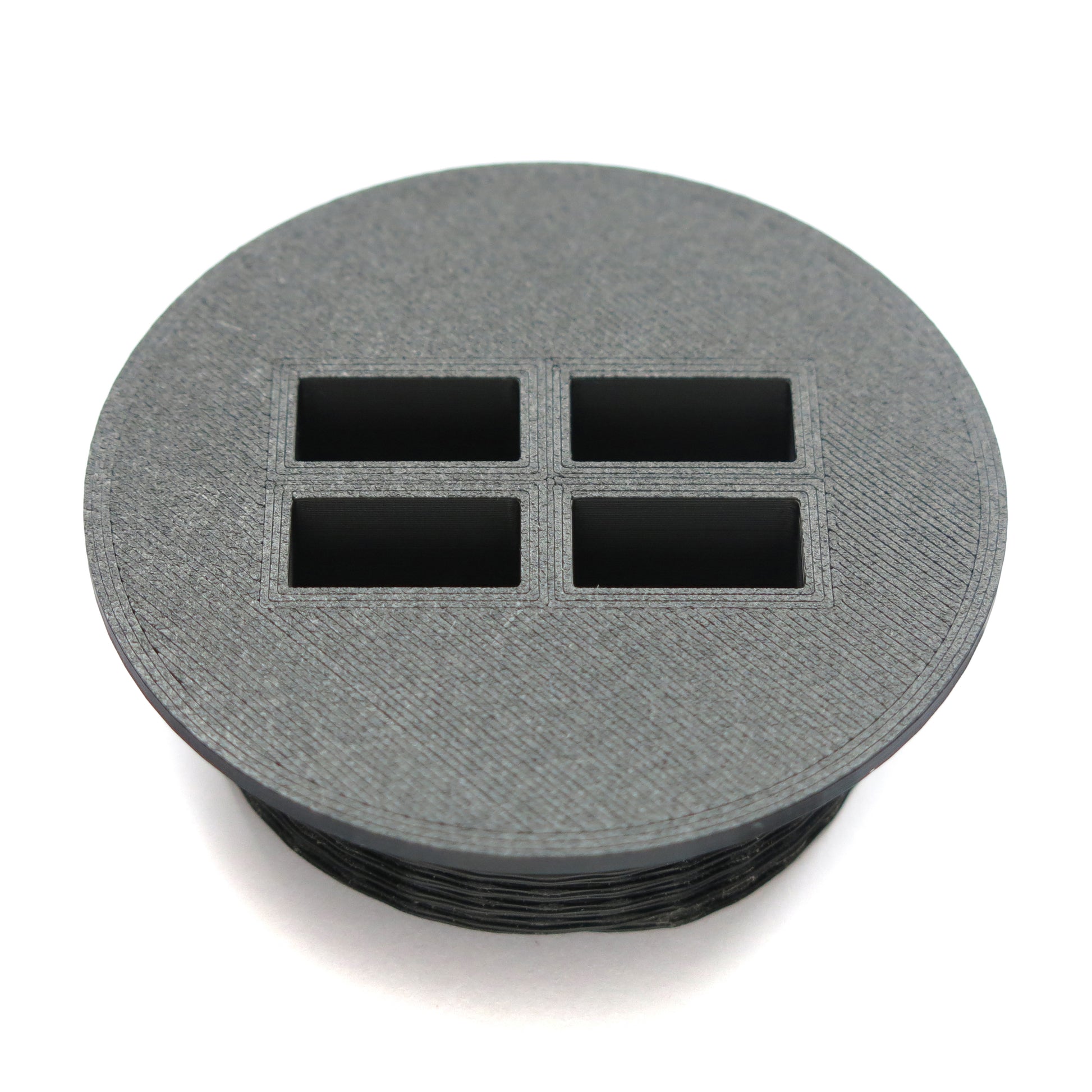

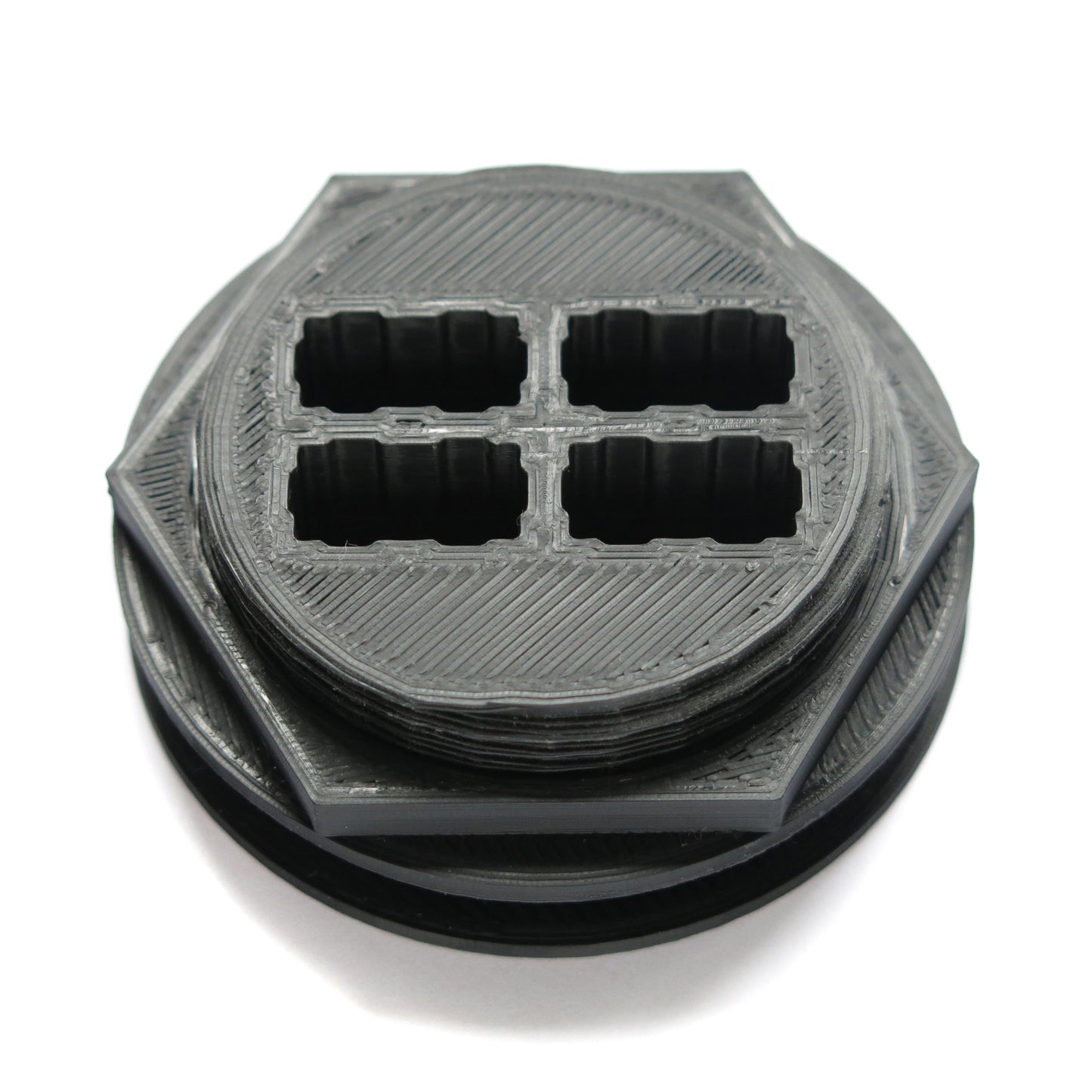

This threaded panel mount allows you to mount four pairs of Anderson Powerpole PP15, PP30 or PP45 connectors in a variety of places.

Specifications

  • Fitting - Panel mount fits a 51mm hole (commonly available hole saw size).
  • Maximum panel thickness - 13mm.
  • Front face diameter - 65mm
  • Easy installation - Finger tightening is sufficient in most circumstances. If required, the retaining nut can be tightened with a spanner or adjustable wrench. Please bear in mind that the threads are made from plastic, so be careful not to overtighten.
  • Includes four retaining set screws (M3x5) to secure and prevent movement of the connector. The set screws require a 1.5mm hex key to tighten them (not included).
  • Versatile - Can house either PP15, PP30 or PP45 connectors.
  • Material - 3D printed using PLA.



Listing Includes

  • 1x 4-Way panel mount fitting for Anderson Powerpole connectors.

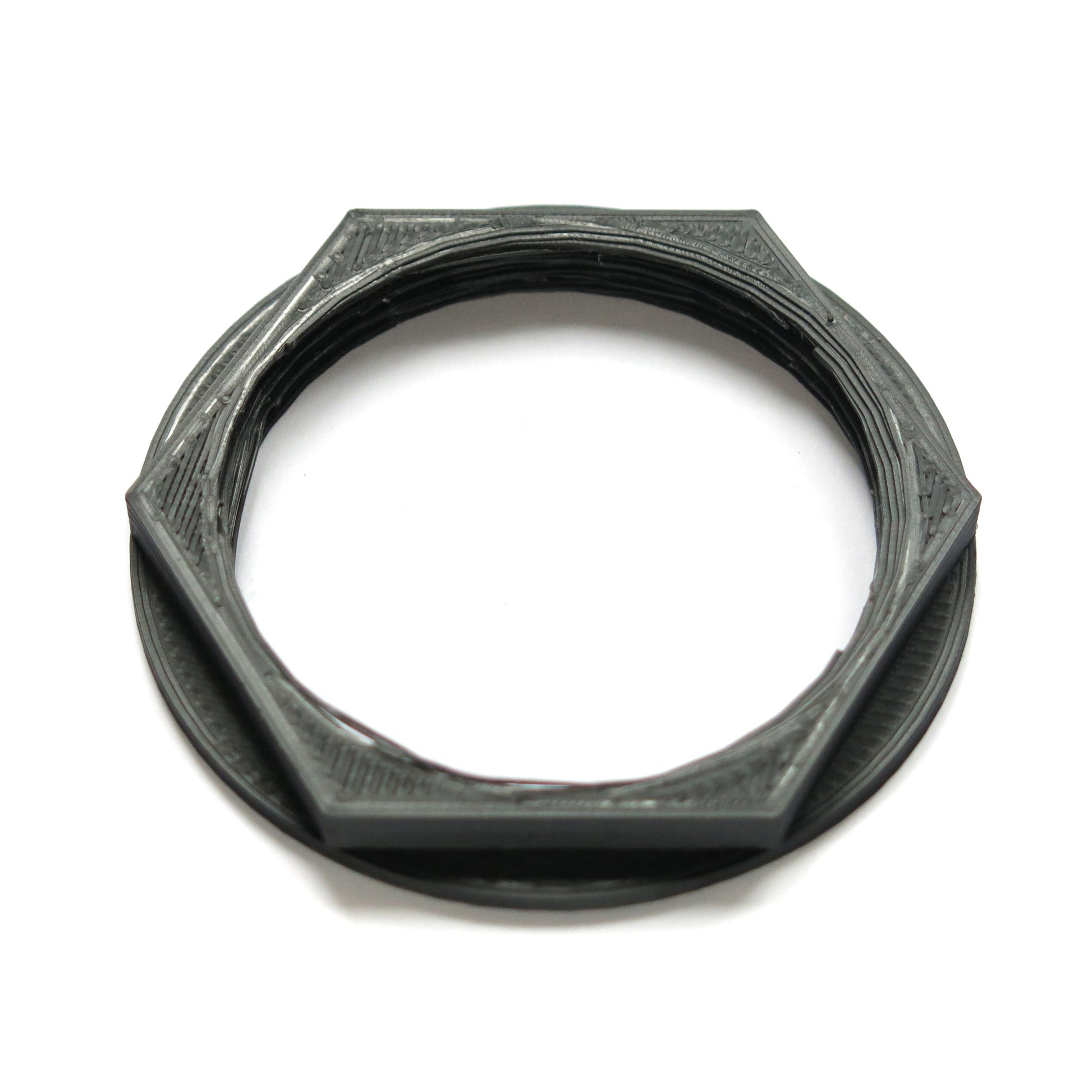

  • 1x securing nut.
  • 4x connector retaining set screws (already installed).


*Connectors NOT included.
