8-Way Threaded Panel Mount Housing for Anderson Powerpole Connector PP15 PP30 PP45
8-Way Threaded Panel Mount Housing for Anderson Powerpole Connector PP15 PP30 PP45
Regular price
£17.95 GBP
Regular price
£0.00 GBP
Sale price
£17.95 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

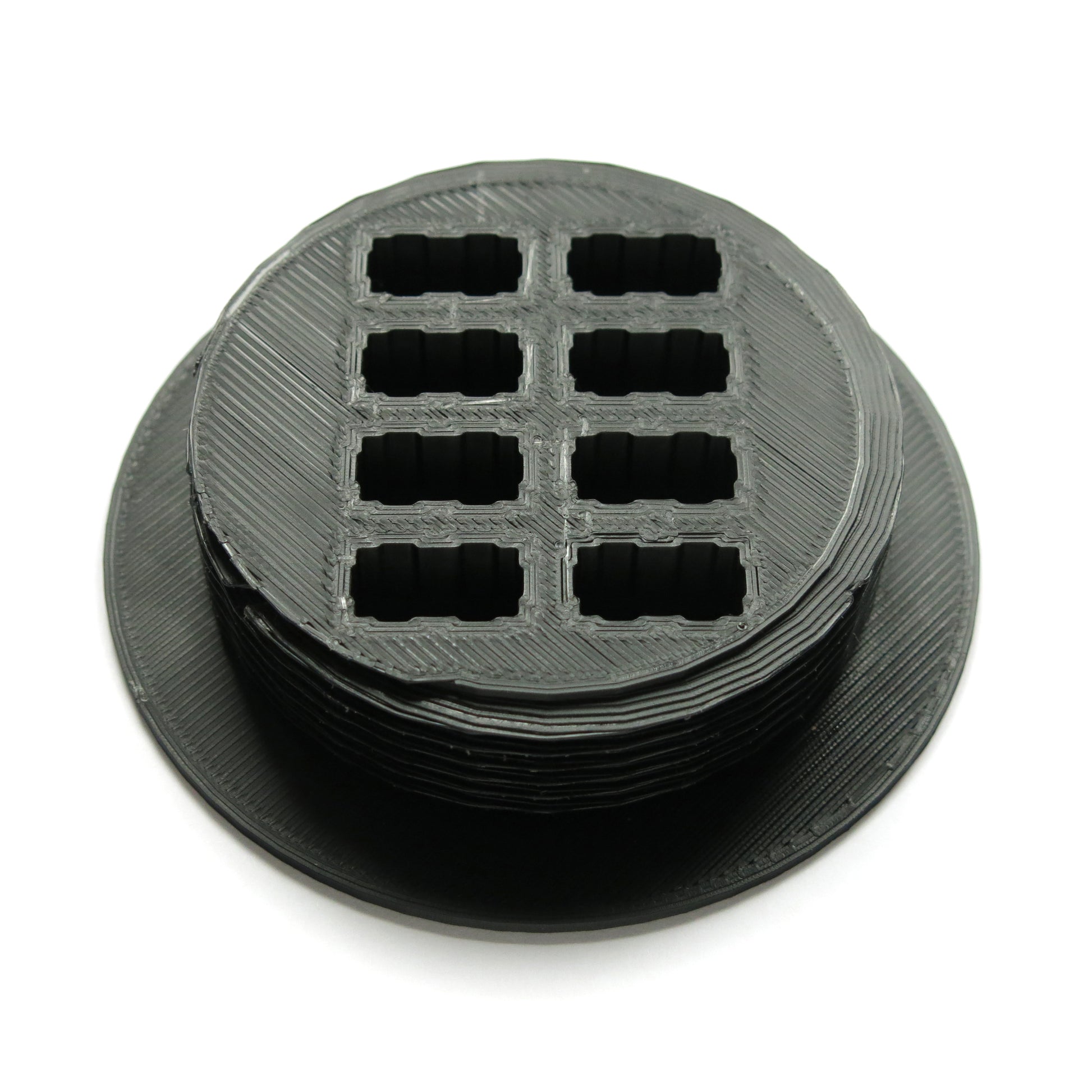

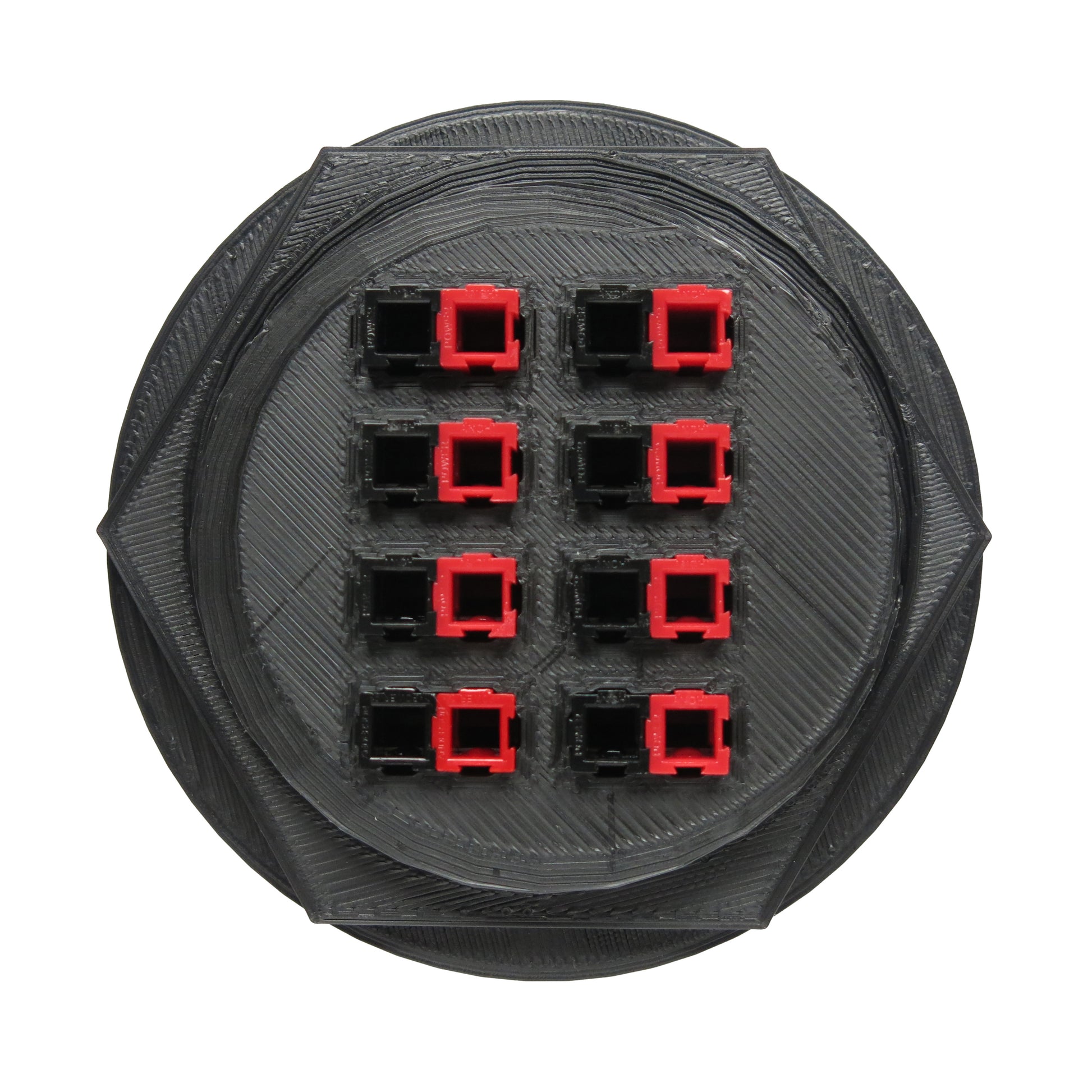

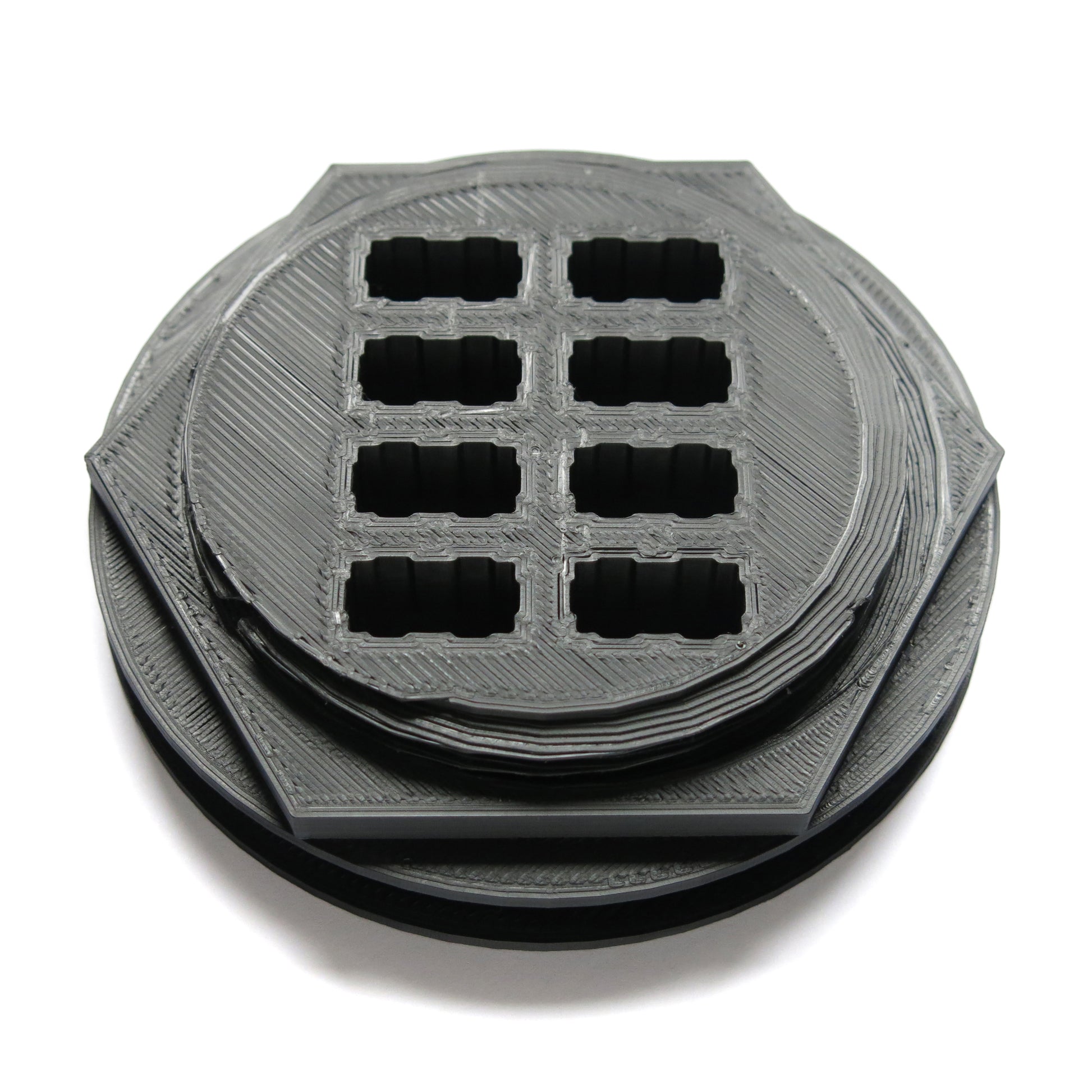

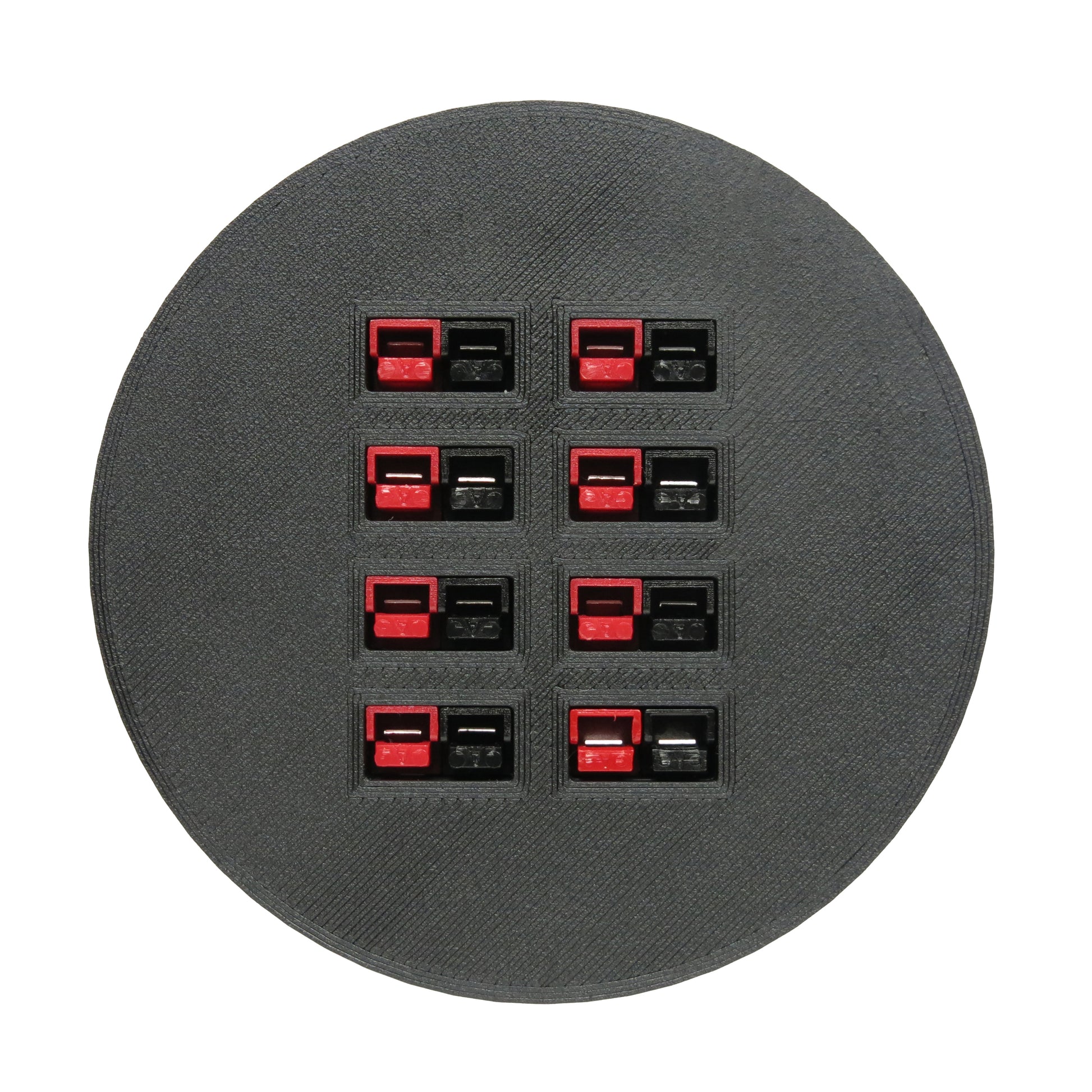

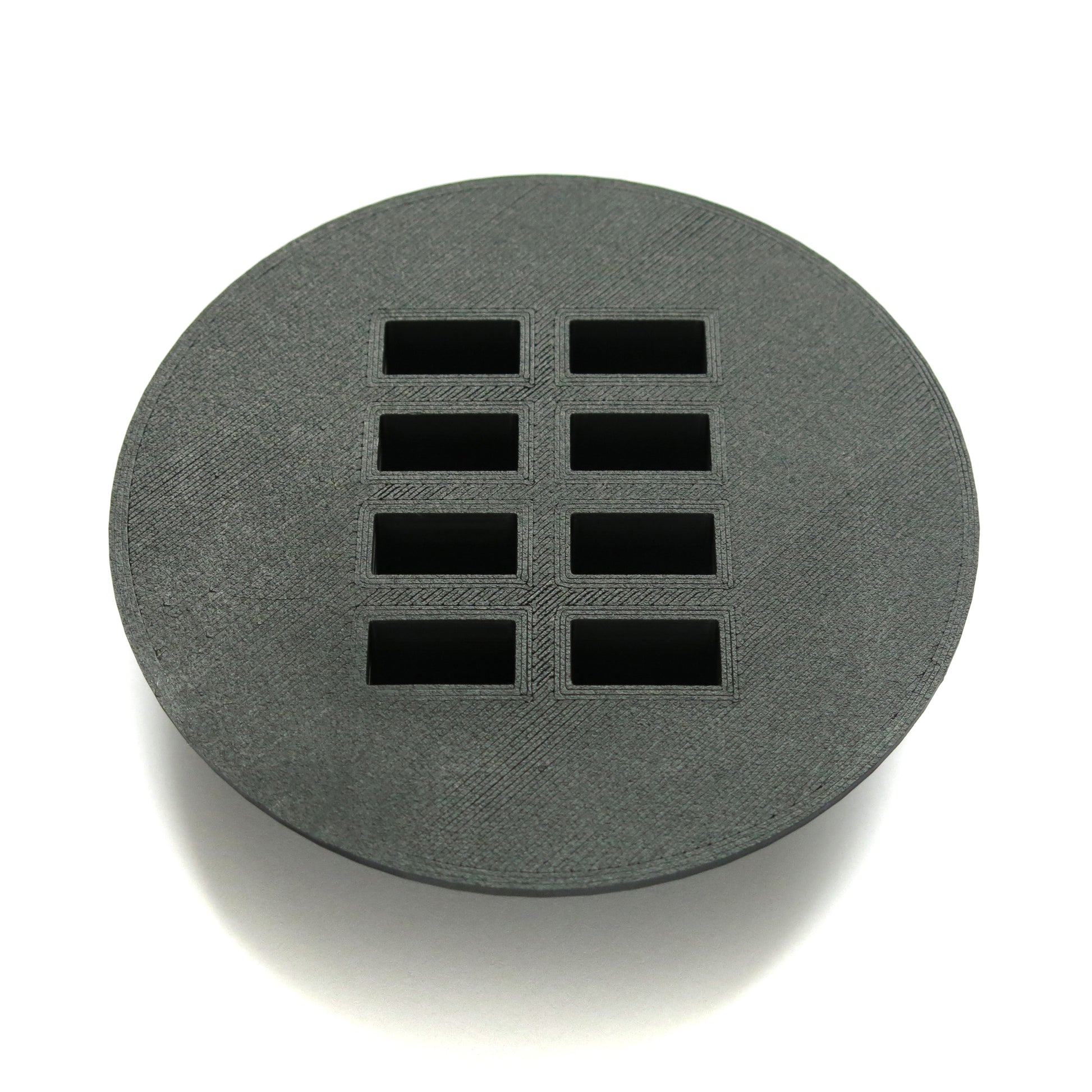

This threaded panel mount allows you to mount eight pairs of Anderson Powerpole PP15, PP30 or PP45 connectors in a variety of places.
Specifications
Specifications
- Fitting - Panel mount fits a 76mm hole (commonly available hole saw size).
- Maximum panel thickness - 13mm.
- Front face diameter - 98mm
- Easy installation - Finger tightening is sufficient in most circumstances. If required, the retaining nut can be tightened with a spanner or adjustable wrench. Please bear in mind that the threads are made from plastic, so be careful not to overtighten.
- Includes eight retaining set screws (M3x5) to secure and prevent movement of the connector. The set screws require a 1.5mm hex key to tighten them (not included).
- Versatile - Can house either PP15, PP30 or PP45 connectors.
- Material - 3D printed using PLA.
Listing Includes
- 1x 8-Way Anderson Powerpole panel mount fitting.

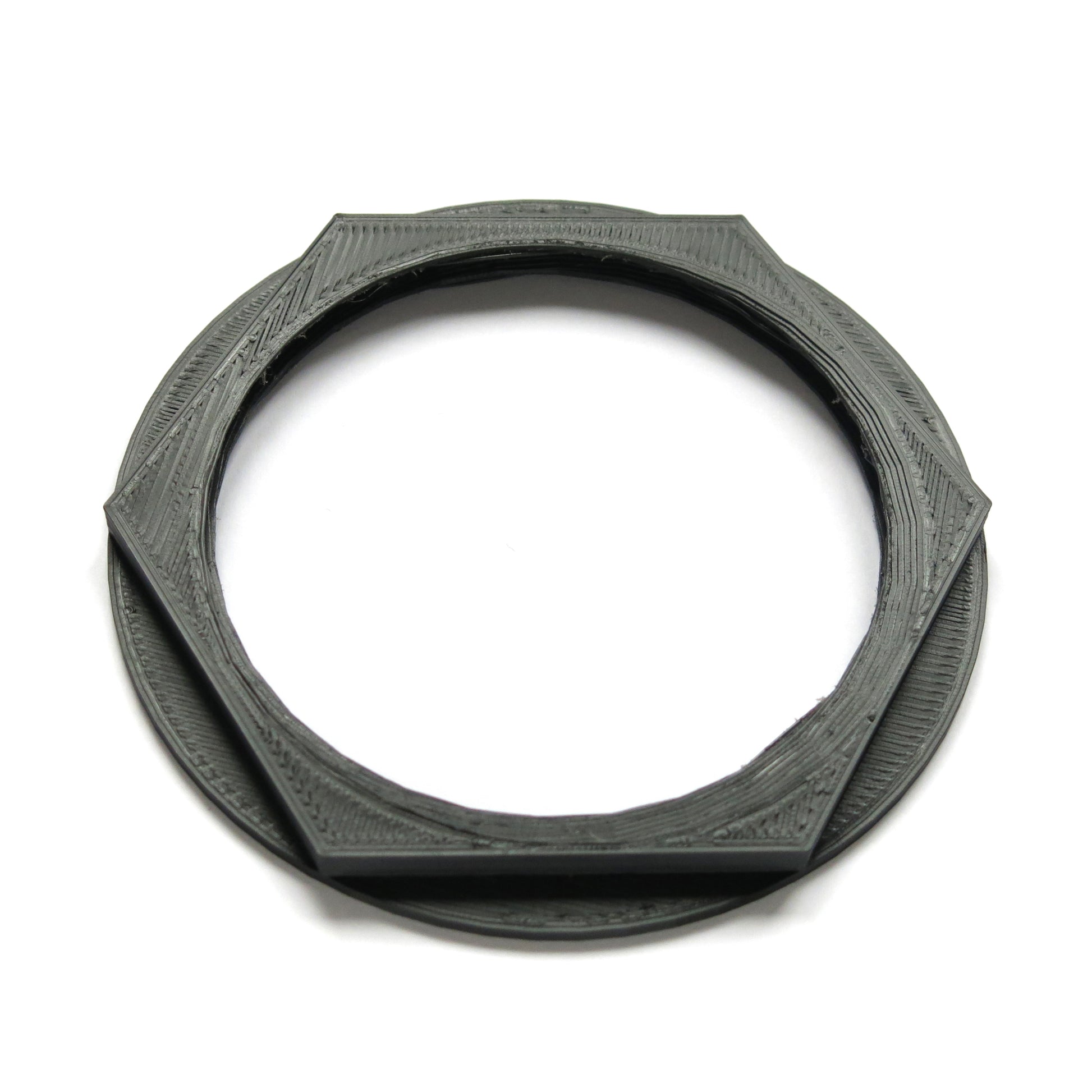

- 1x securing nut.
- 8x connector retaining set screws (already installed).
*Connectors NOT included.
