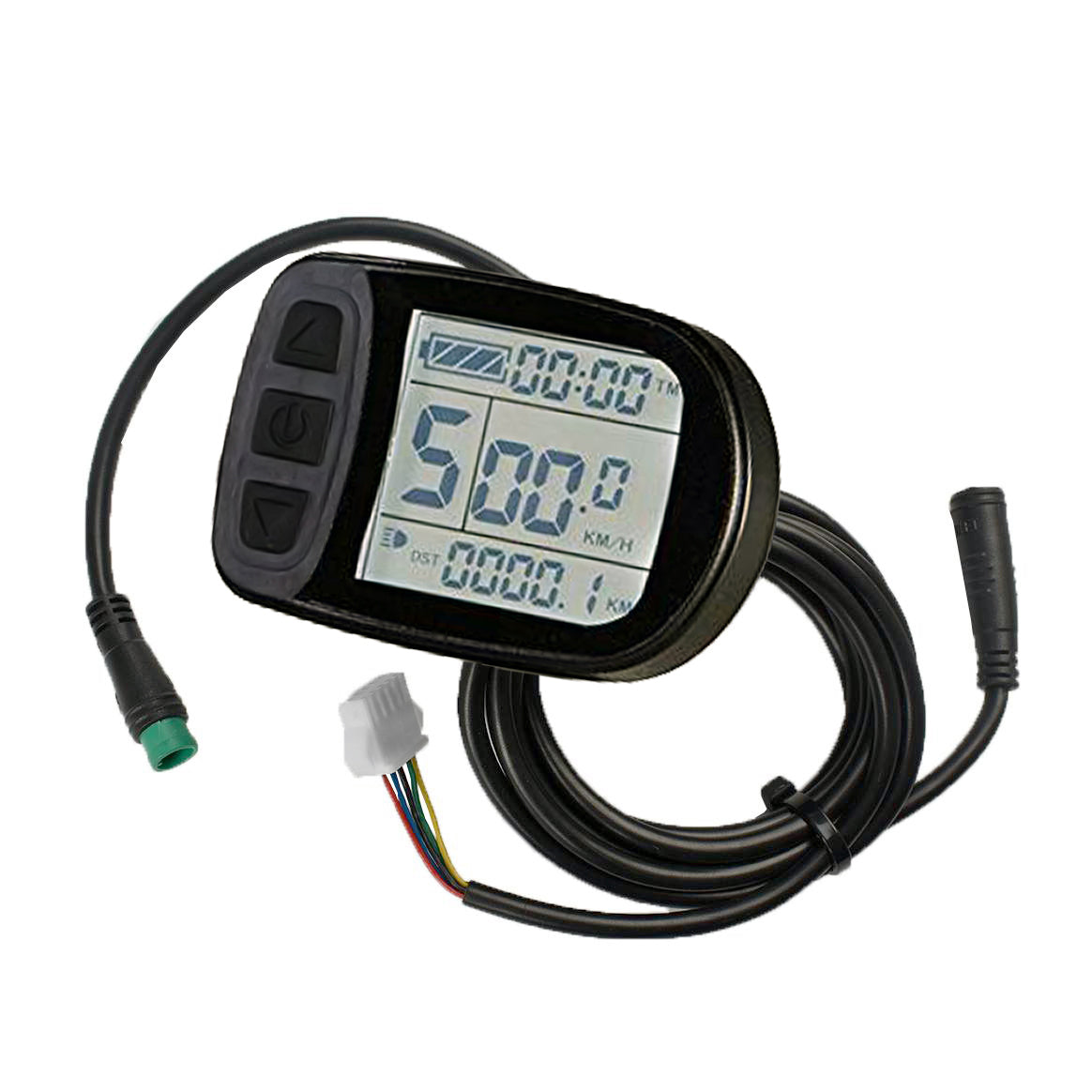

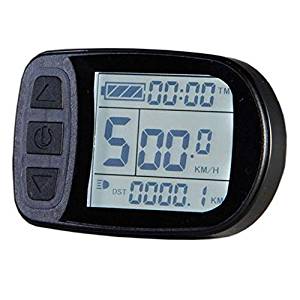

KT-LCD5 LCD Display Meter Panel for KT Series Controllers 24/36/48V

KT-LCD5 LCD Display Meter Panel for KT Series Controllers 24/36/48V

Regular price £42.95 GBP
Regular price £0.00 GBP Sale price £42.95 GBP
Sale Sold out
Shipping calculated at checkout.

KT-LCD5 LCD display.

PLEASE NOTE: This LCD display is only compatible with KT series controllers. It will not function with other unsupported controllers.

User Manuals

KT-LCD5 Quick Start Guide

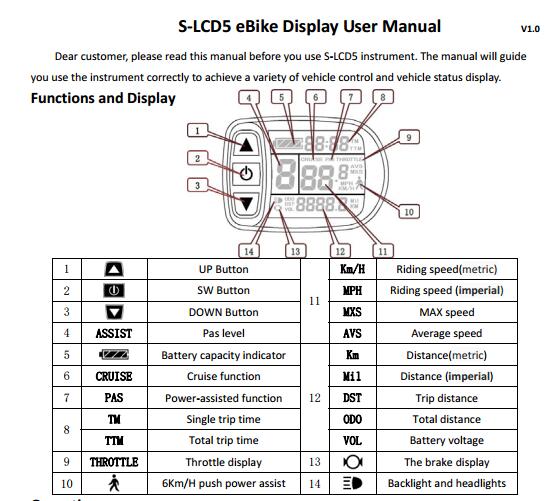

KT-LCD5 User Manual


Model: KT-LCD5
Standard interface: SM-5Y
24/36/48V Universal Voltage
Dimension: 16.5x51x77mm


Data display:it shows the riding speed, a single mileage and cumulative mileage, riding time,
power-assist gear, battery voltage and charge status, brake status and other cycling parameters;
Intelligent power:a true reflection of the battery charge, real-time recording of the power
consumption to ensure riding mileage;
Stalls setting:multi-gear switch and automatic save of the power-assist gear, and it can restore
power-off stall state when turned on;
Parameter setting:with a number of user parameter setting functions, motor parameters, velocity
measurement parameters, speed-limit parameters, power parameters, power-assist control parameters,
the minimum controller voltage and maximum current parameters and other operating models for
settings adjustment ;
Data view:Users can view historical driving data and clear accordingly, view single or cumulative
riding time, riding mileage, maximum speed and average speed of single riding;
Vehicle boosting:With 6Km/h power-assisting functions, the boost logo flashes during
boosting, and riders can use it when driving the vehicle and the vehicle driving is labor-saving and easy;
Cruise and constant speed:With the setting and display of the cruise, achieving to
automatically maintain the vehicle speed, so that the vehicle drives at a constant speed;
Night driving:With the functions of LCD backlit display and headlight switch control,
instrument backlighting and headlights can be turned on during driving at night;
Password setting:With three-bit of power-on password setting;
Automatically prompt:For the appeared failure of the vehicle, it can prompt different fault
codes for easy inspection and maintenance of vehicle;

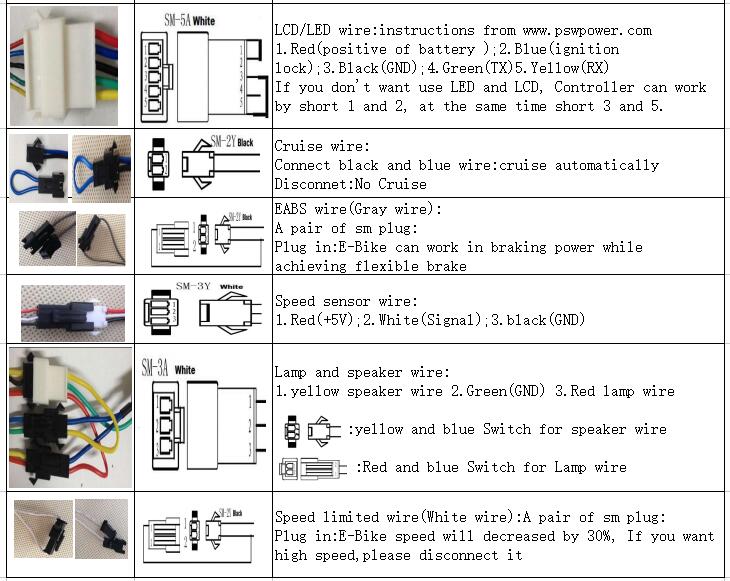

Use five-line of digital communication, the instrument has good compatibility and interchangeability,
different instruments can be conducted the data exchanges and parameters copy directly;
Supply voltage of 24V, 36V, 48V can be automatically identified and compatible;

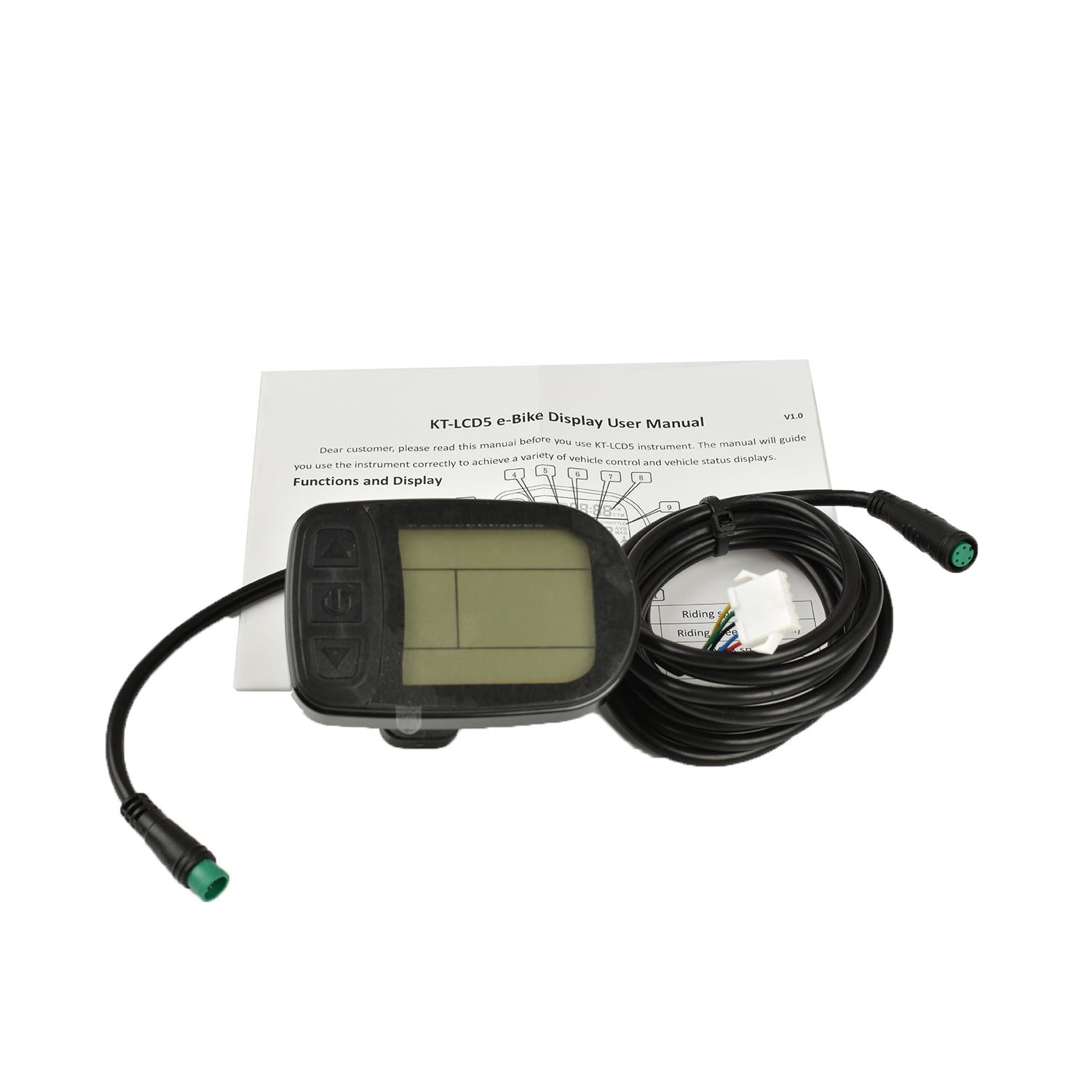

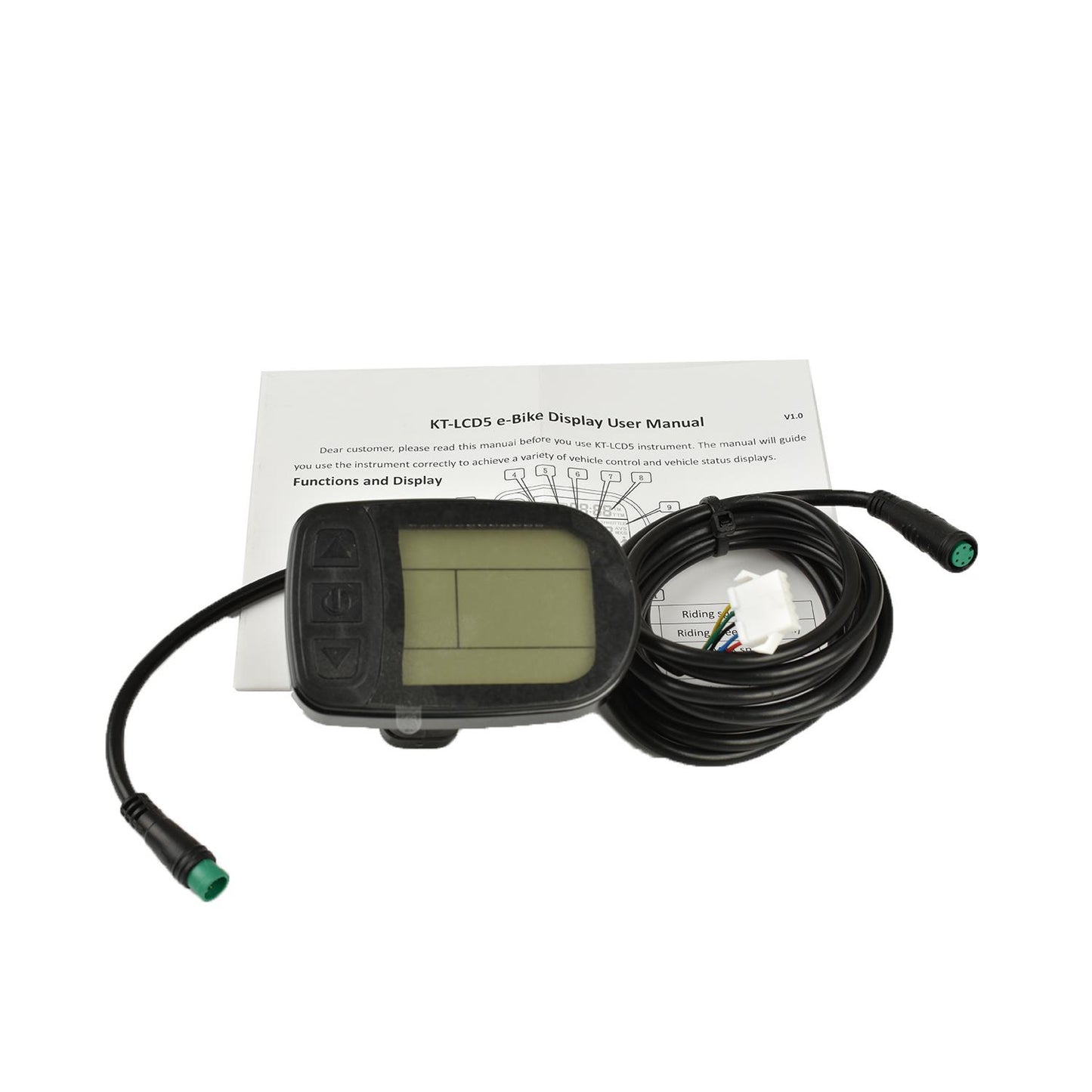

Package includes:

1x KT-LCD5 display meter
1x Cable
1x Quick start user manual
