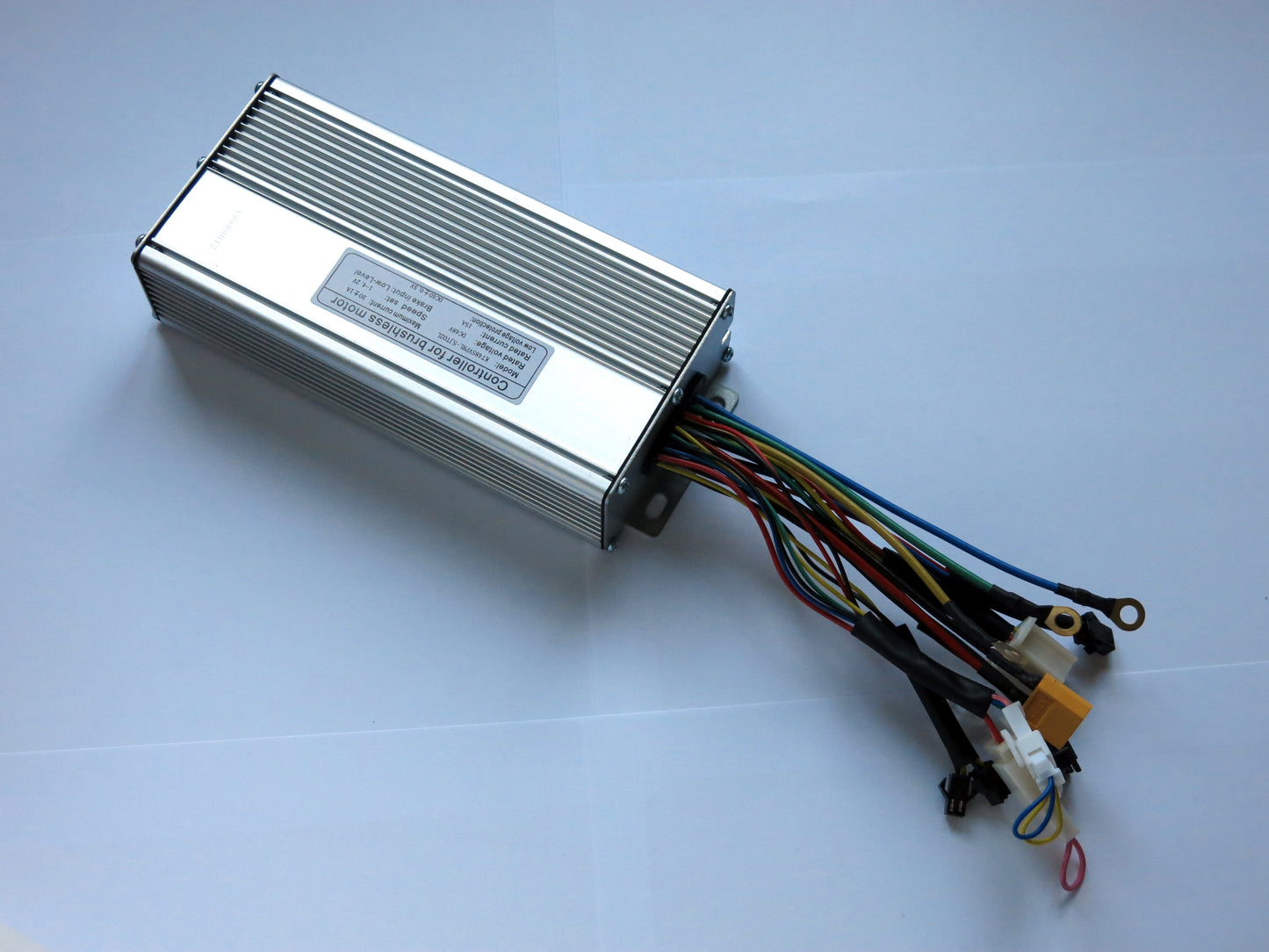

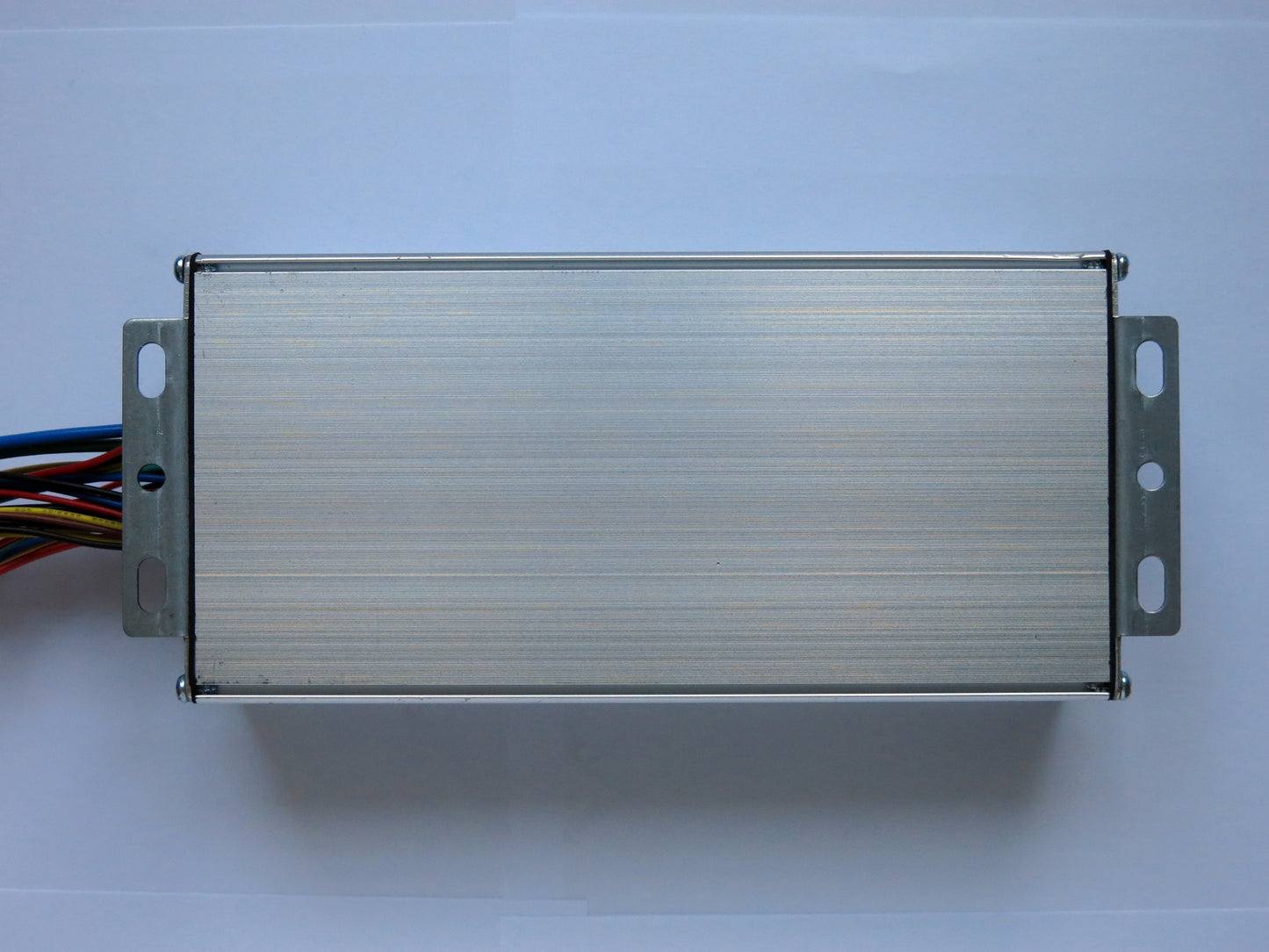

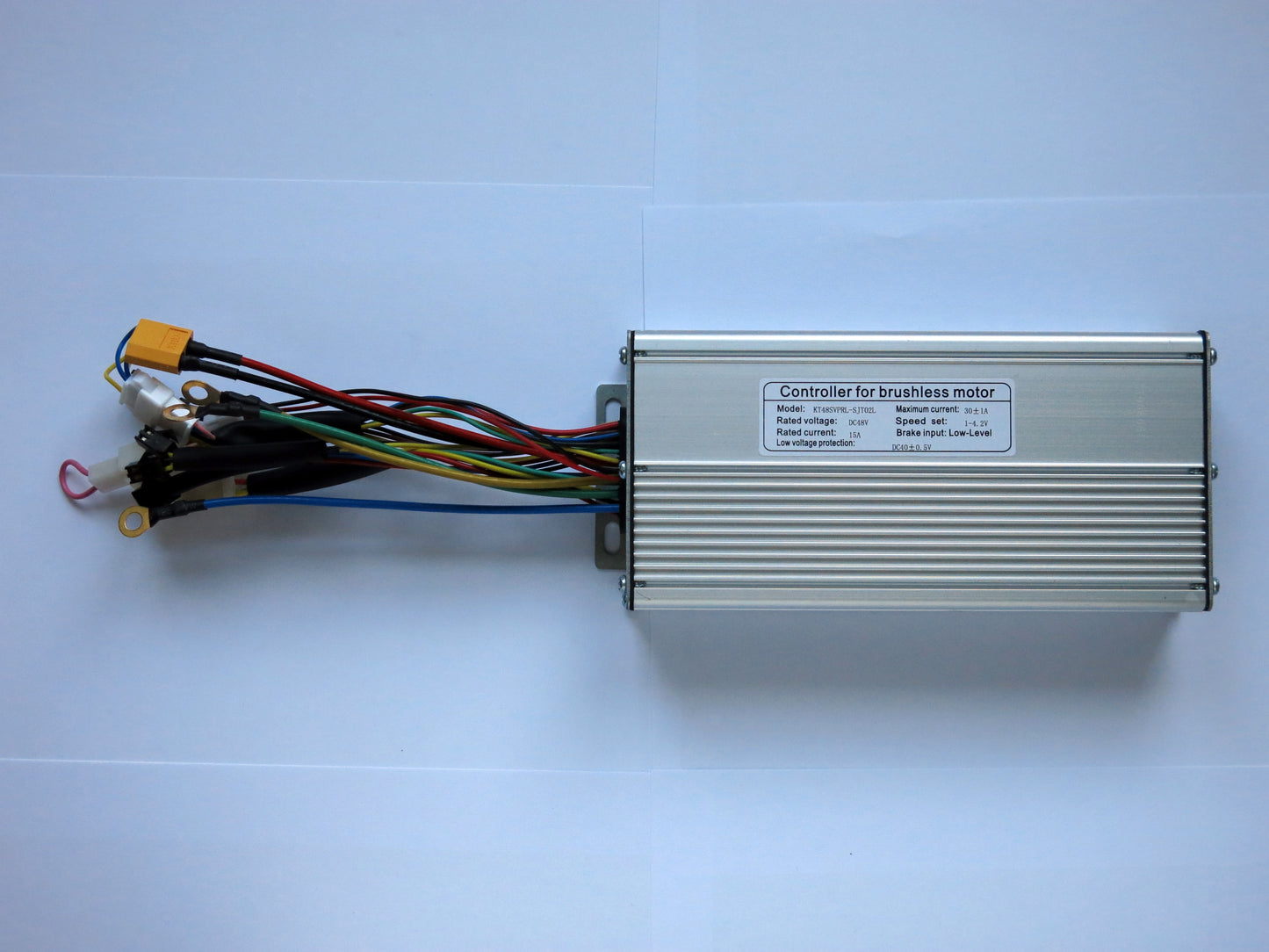

Sensored Brushless Motor Controller 48V 1000/1500W 12-FET 30A KT Sine Wave

Sensored Brushless Motor Controller 48V 1000/1500W 12-FET 30A KT Sine Wave

Regular price £84.95 GBP
Regular price £0.00 GBP Sale price £84.95 GBP
Sale Sold out
Shipping calculated at checkout.

12 fet 30A KT sine wave brushless controller. Includes phase wire connector box.

PLEASE NOTE: This is a sensored brushless motor controller. Your motor should have 8 or 9 wires in order to function with this controller. If your motor only has 3 wires, you will require a sensorless controller.

Although this controller can be used without an LCD display, one is required to use its full functionality and access advanced configuration options. I stock the following compatible LCD displays:

KT-LCD3: https://torquetech.co.uk/products/ebike-kt-lcd3-lcd-display-meter-panel-for-kt-series-controllers-24-36-48v

KT-LCD4: https://torquetech.co.uk/products/ebike-kt-lcd4-lcd-display-meter-panel-for-kt-series-controllers-24-36-48v

KT-LCD5: https://torquetech.co.uk/products/ebike-kt-lcd5-lcd-display-meter-panel-for-kt-series-controllers-24-36-48v

KT-LCD8HU: https://torquetech.co.uk/products/kt-lcd8hu-colour-lcd-display-meter-panel-for-kt-series-controllers-24-36-48v-usb

KT-LCD8SU: https://torquetech.co.uk/products/kt-lcd8su-colour-lcd-display-meter-panel-for-kt-series-controllers-24-36-48v-usb

Technical Data:

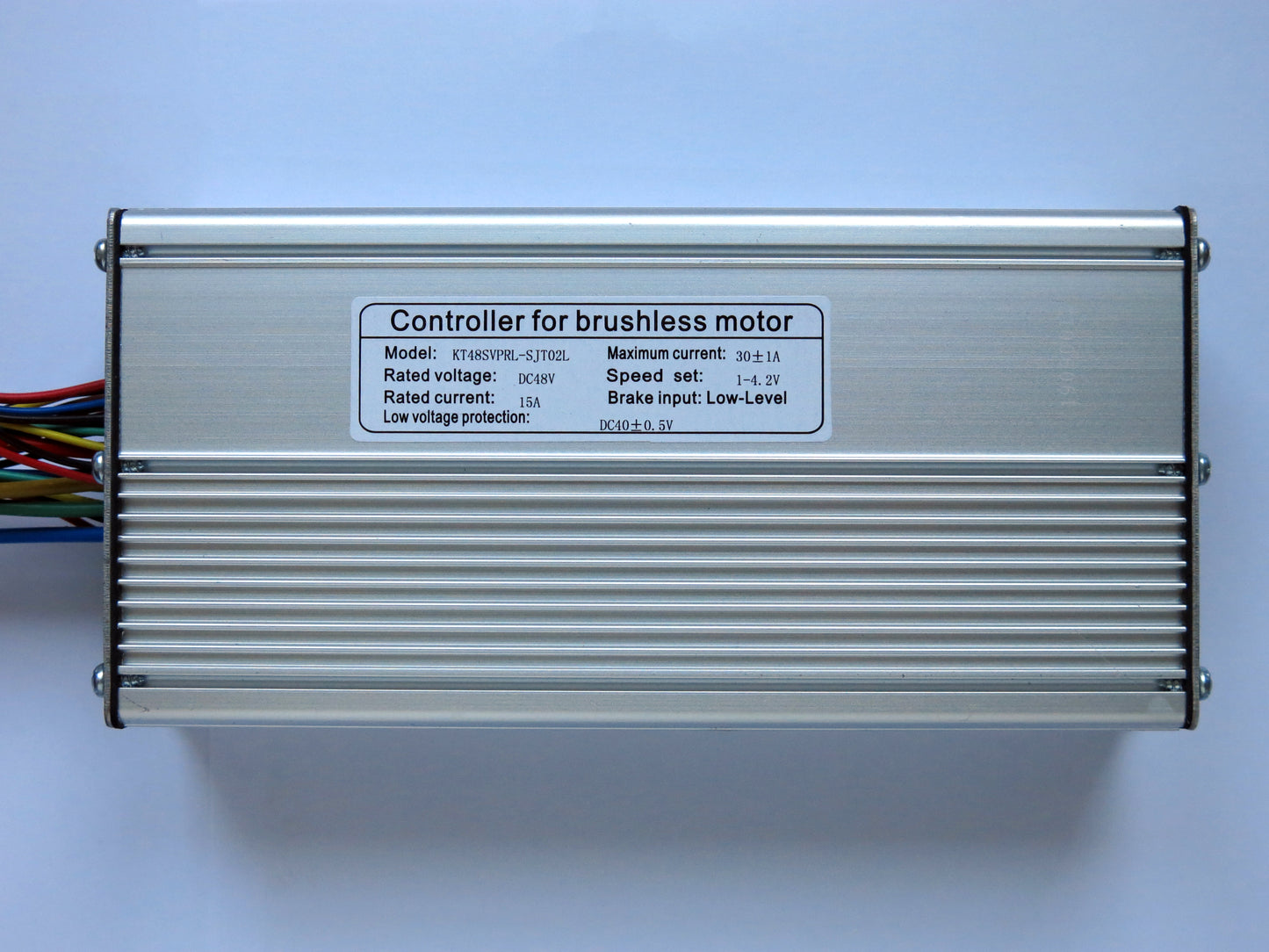

  • Model: KT48SVPRL-SJT02L
  • Compatible with KT LCD Displays
  • Input Voltage: DC 48V
  • Min. Voltage: DC40±0.5V
  • Max. Current: 30±1A
  • Speed set: 1-4.2V
  • Brake Input: Low-Level

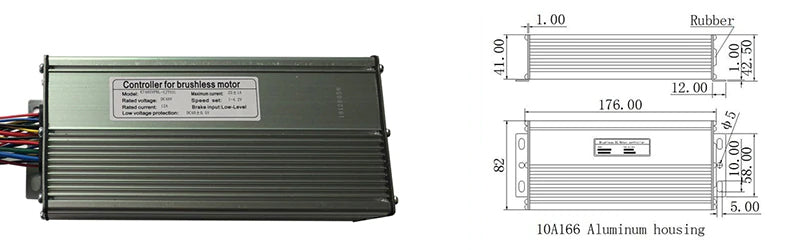

  • Size: 176x82x41mm
  • Color: Silver
  • Weight: 536g
  • 12 pcs MOSFET
  • Application: Max. 48V 1500W
  • Fits sensored motor

 Advantages:

  • This controller functions with & without PAS (Pedal Assist Sensor)
  • Sine Wave Controller (more stable, high efficiency, low current consumption, long life)
  • Support hydraulic brake sensor or brake sensor connector
  • Support LED Control Panel or LCD Control Panel
  • Support cruise function
  • Support LED light
  • Support regenerative braking function (must use our LCD Display together to activate this function)
