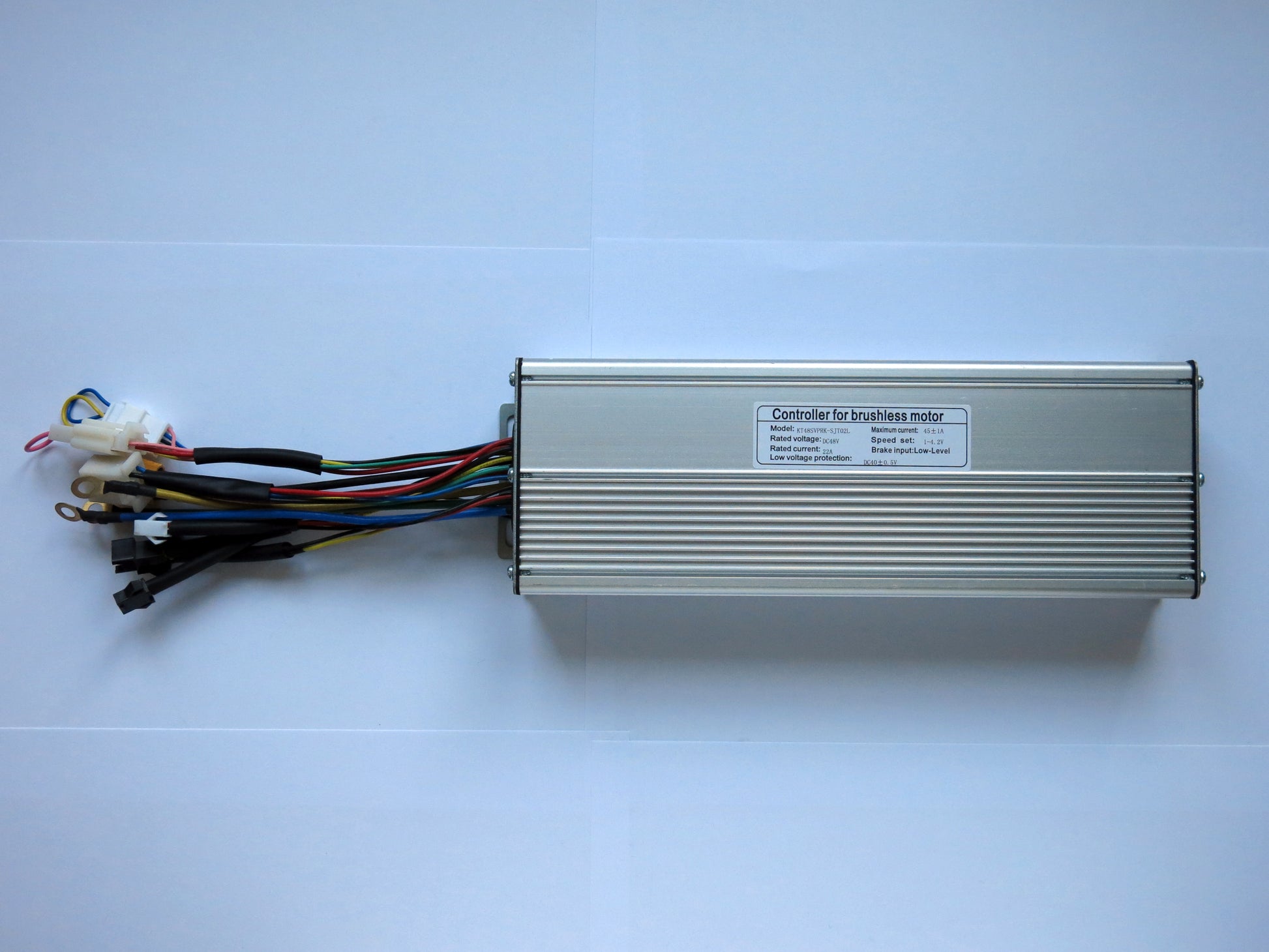

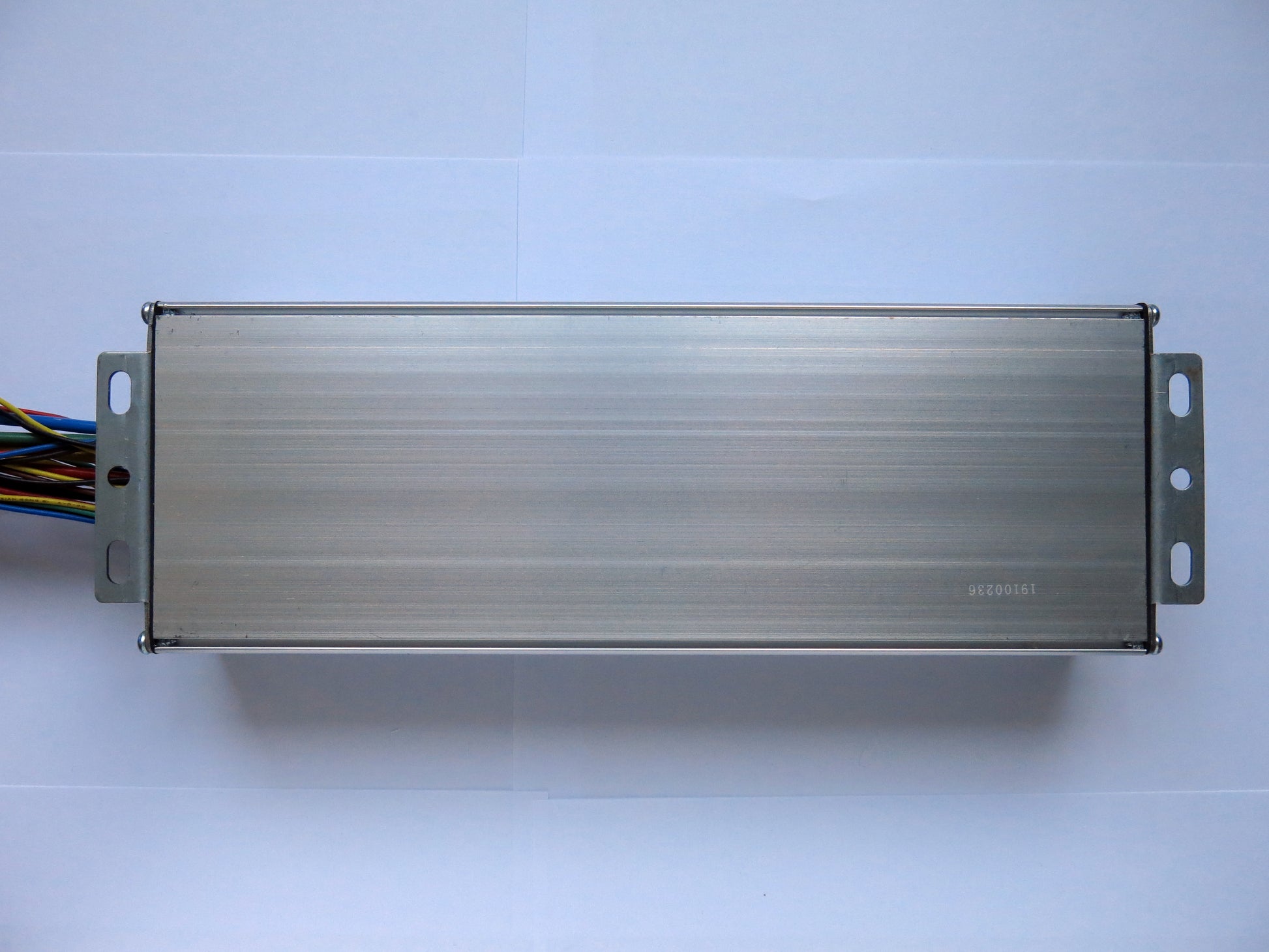

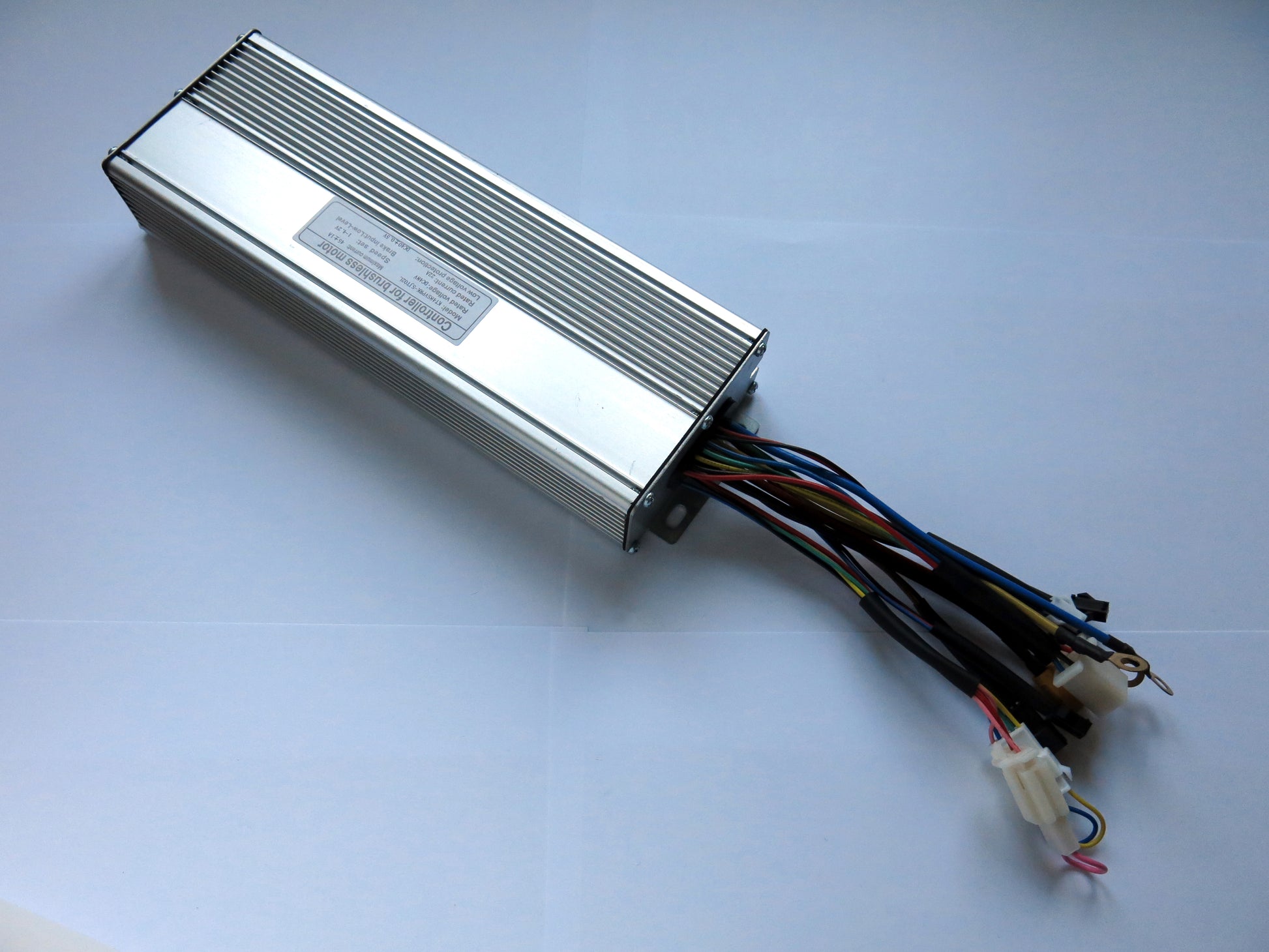

Sensored Brushless Motor Controller 48V 1500/2000W 18-FET 45A KT Sine Wave

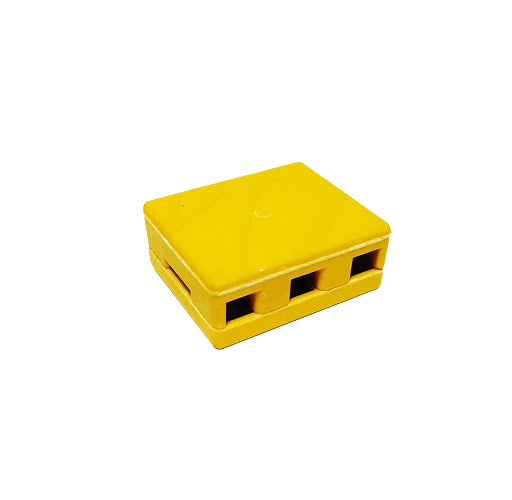

This listing is for 1x 18 fet 45A KT sine wave brushless controller. Includes phase wire connector box.

PLEASE NOTE: This is a sensored brushless motor controller. Your motor should have 8 or 9 wires in order to function with this controller. If your motor only has 3 wires, you will require a sensorless controller.

Although this controller can be used without an LCD display, one is required to use its full functionality and access advanced configuration options. I stock the following compatible LCD displays:

KT-LCD3: https://torquetech.co.uk/products/ebike-kt-lcd3-lcd-display-meter-panel-for-kt-series-controllers-24-36-48v

KT-LCD4: https://torquetech.co.uk/products/ebike-kt-lcd4-lcd-display-meter-panel-for-kt-series-controllers-24-36-48v

KT-LCD5: https://torquetech.co.uk/products/ebike-kt-lcd5-lcd-display-meter-panel-for-kt-series-controllers-24-36-48v

KT-LCD8HU: https://torquetech.co.uk/products/kt-lcd8hu-colour-lcd-display-meter-panel-for-kt-series-controllers-24-36-48v-usb

KT-LCD8SU: https://torquetech.co.uk/products/kt-lcd8su-colour-lcd-display-meter-panel-for-kt-series-controllers-24-36-48v-usb

Technical Data:

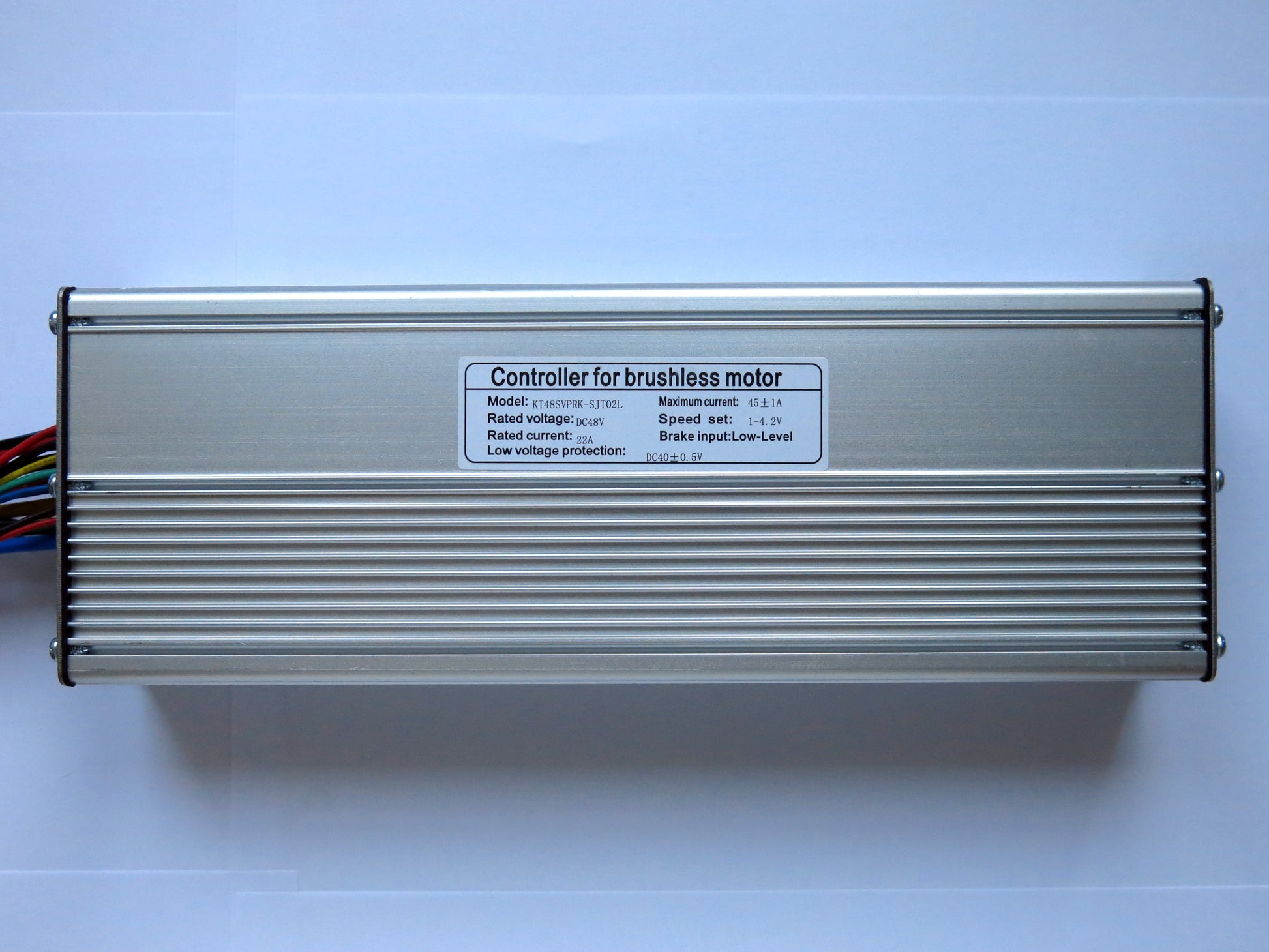

• Model: KT48SVPRK-SJT02L
• Compatible with KT LCD Displays
• Input Voltage: DC 48V
• Min. Voltage: DC40±0.5V
• Max. Current: 45±1A
• Speed set: 1-4.2V
• Brake Input: Low-Level

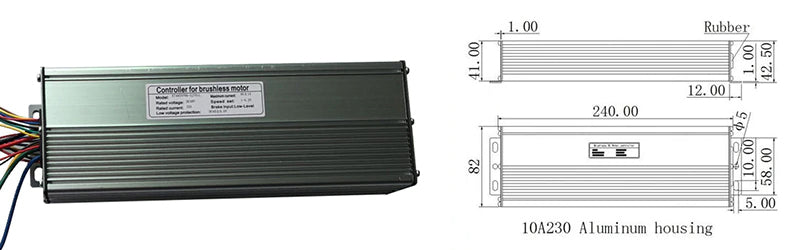

• Size: 240x82x41mm
• Color: Silver
• Weight: 730g
• 18 pcs MOSFET
• Application: Max. 48V 2000W
• Fits sensored motor

 Advantages:

• This controller functions with & without PAS (Pedal Assist Sensor)
• Sine Wave Controller (more stable, high efficiency, low current consumption, long life)
• Support hydraulic brake sensor or brake sensor connector
• Support LED Control Panel or LCD Control Panel
• Support cruise function
• Support LED light
• Support regenerative braking function (must use our LCD Display together to activate this function)
