Sensored Brushless Motor Controller DC 36V/48V 500W 6-FET 20A KT Sine Wave

Sensored Brushless Motor Controller DC 36V/48V 500W 6-FET 20A KT Sine Wave

Regular price £54.95 GBP
Regular price £0.00 GBP Sale price £54.95 GBP
Sale Sold out
Shipping calculated at checkout.

6 fet 20A KT sine wave brushless controller.

PLEASE NOTE: This is a sensored brushless motor controller. Your motor should have 8 or 9 wires in order to function with this controller. If your motor only has 3 wires, you will require a sensorless controller.

Although this controller can be used without an LCD display, one is required to use its full functionality and access advanced configuration options. I stock the following compatible LCD displays:

KT-LCD3: https://torquetech.co.uk/products/ebike-kt-lcd3-lcd-display-meter-panel-for-kt-series-controllers-24-36-48v

KT-LCD4: https://torquetech.co.uk/products/ebike-kt-lcd4-lcd-display-meter-panel-for-kt-series-controllers-24-36-48v

KT-LCD5: https://torquetech.co.uk/products/ebike-kt-lcd5-lcd-display-meter-panel-for-kt-series-controllers-24-36-48v

KT-LCD8HU: https://torquetech.co.uk/products/kt-lcd8hu-colour-lcd-display-meter-panel-for-kt-series-controllers-24-36-48v-usb

KT-LCD8SU: https://torquetech.co.uk/products/kt-lcd8su-colour-lcd-display-meter-panel-for-kt-series-controllers-24-36-48v-usb


Technical Data:

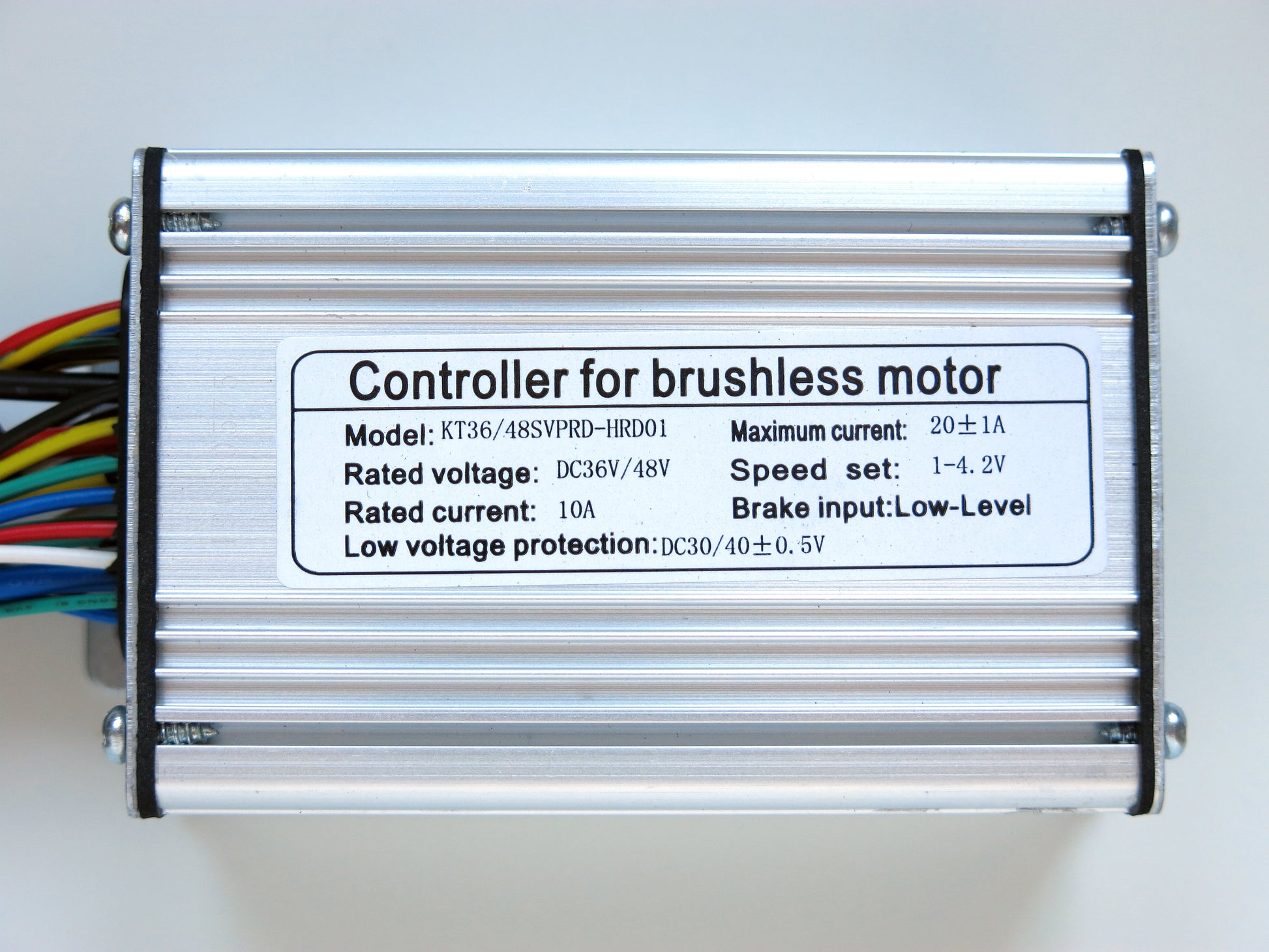

Model: KT36/48SVPRD-HRD01
Compatible with KT LCD Displays
Input Voltage: DC 36V or 48V (Universal)
Min. Voltage: DC30V/40±0.5V
Max. Current: 20±1A
Speed set: 1-4.2V
Brake Input: Low-Level
Size: 96x61x35mm
Color: Silver
Weight: 275g
6 pcs MOSFET
Application: Max. 36V/48V 500W
Fits sensored motor
Advantages:

36V or 48V Universal (supports both voltages)
This controller functions with & without PAS (Pedal Assist Sensor)
Sine Wave Controller (more stable, high efficiency, low current consumption, long life)
Support hydraulic brake sensor or brake sensor connector
Support LED Control Panel or LCD Control Panel
Support 36V or 48V Light Control
Support speed limit to 70%
Support cruise function
Support speaker and LED light
Support regenerative braking function (must use our LCD Display together to activate this function)
