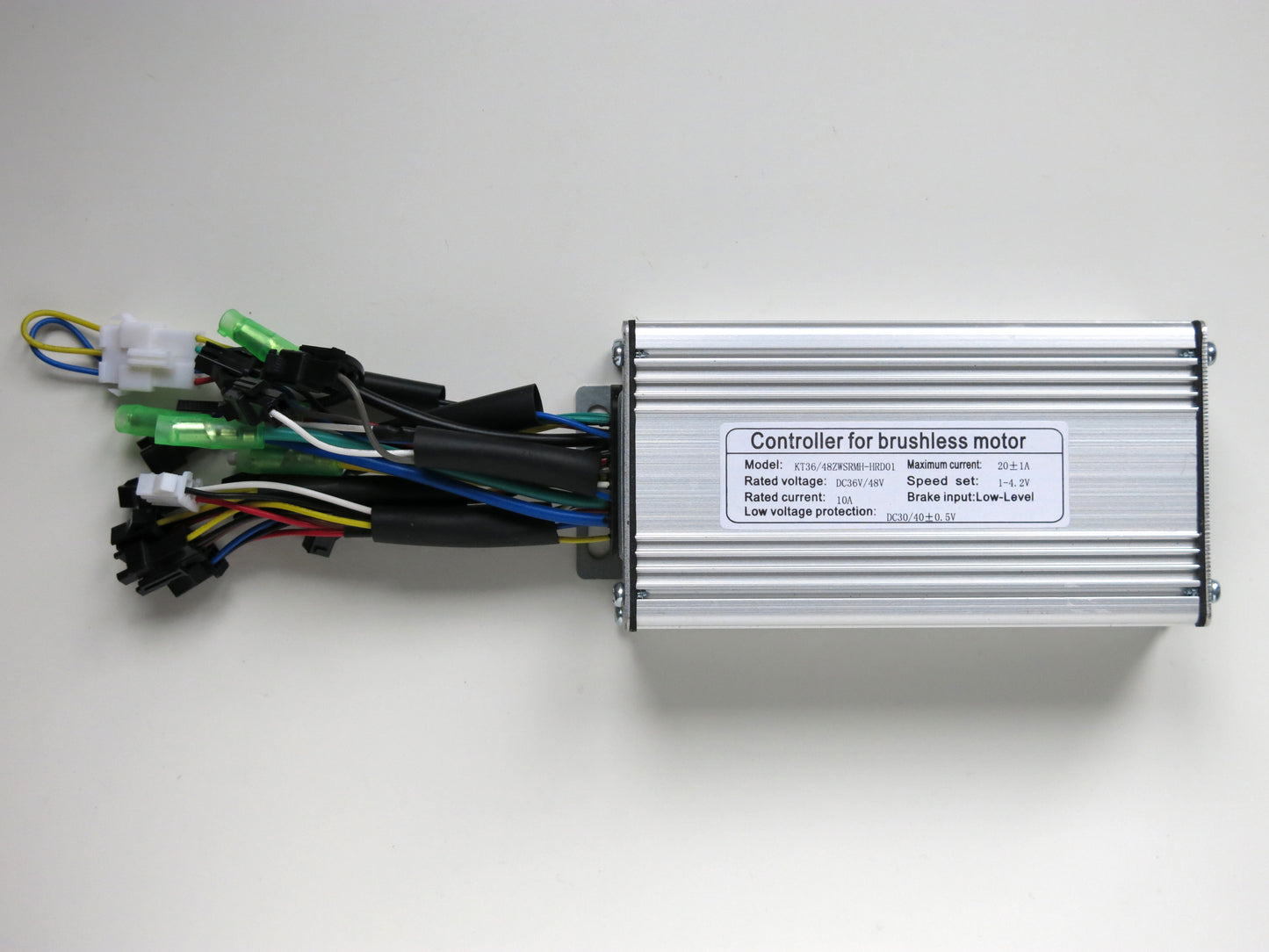

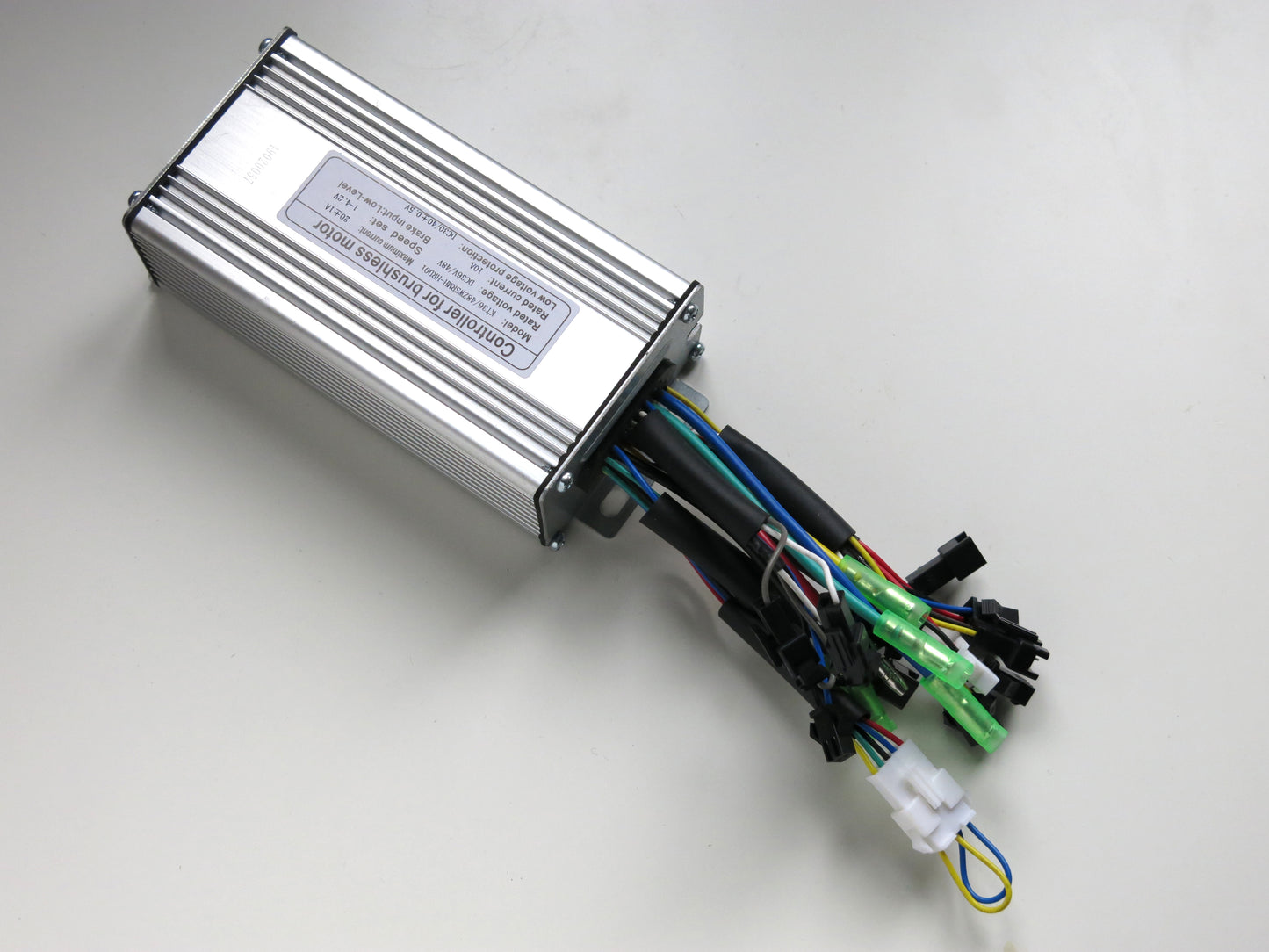

Sensorless Brushless Motor Controller DC 36V/48V 500W 9-FET 20A KT Square

9 fet 20A KT torque simulation sensorless brushless controller.

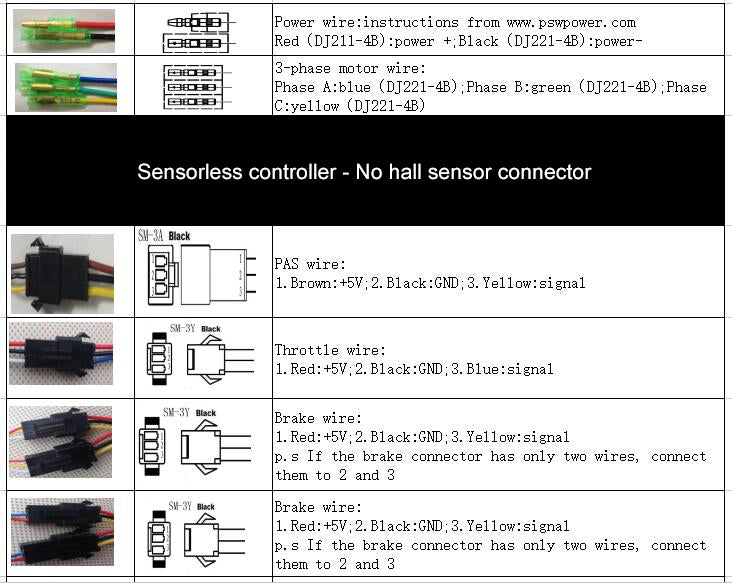

PLEASE NOTE: This is a sensorless brushless motor controller, intended for motors with only 3 wires. If your motor has 8 or 9 wires, it can be used with this controller without the hall sensors connected, by just connecting the 3 thick motor wires.

Although this controller can be used without an LCD display, one is required to use its full functionality and access advanced configuration options. I stock the following compatible LCD displays:

KT-LCD3: https://torquetech.co.uk/products/ebike-kt-lcd3-lcd-display-meter-panel-for-kt-series-controllers-24-36-48v

KT-LCD4: https://torquetech.co.uk/products/ebike-kt-lcd4-lcd-display-meter-panel-for-kt-series-controllers-24-36-48v

KT-LCD5: https://torquetech.co.uk/products/ebike-kt-lcd5-lcd-display-meter-panel-for-kt-series-controllers-24-36-48v

KT-LCD8HU: https://torquetech.co.uk/products/kt-lcd8hu-colour-lcd-display-meter-panel-for-kt-series-controllers-24-36-48v-usb

KT-LCD8SU: https://torquetech.co.uk/products/kt-lcd8su-colour-lcd-display-meter-panel-for-kt-series-controllers-24-36-48v-usb

Technical Data:

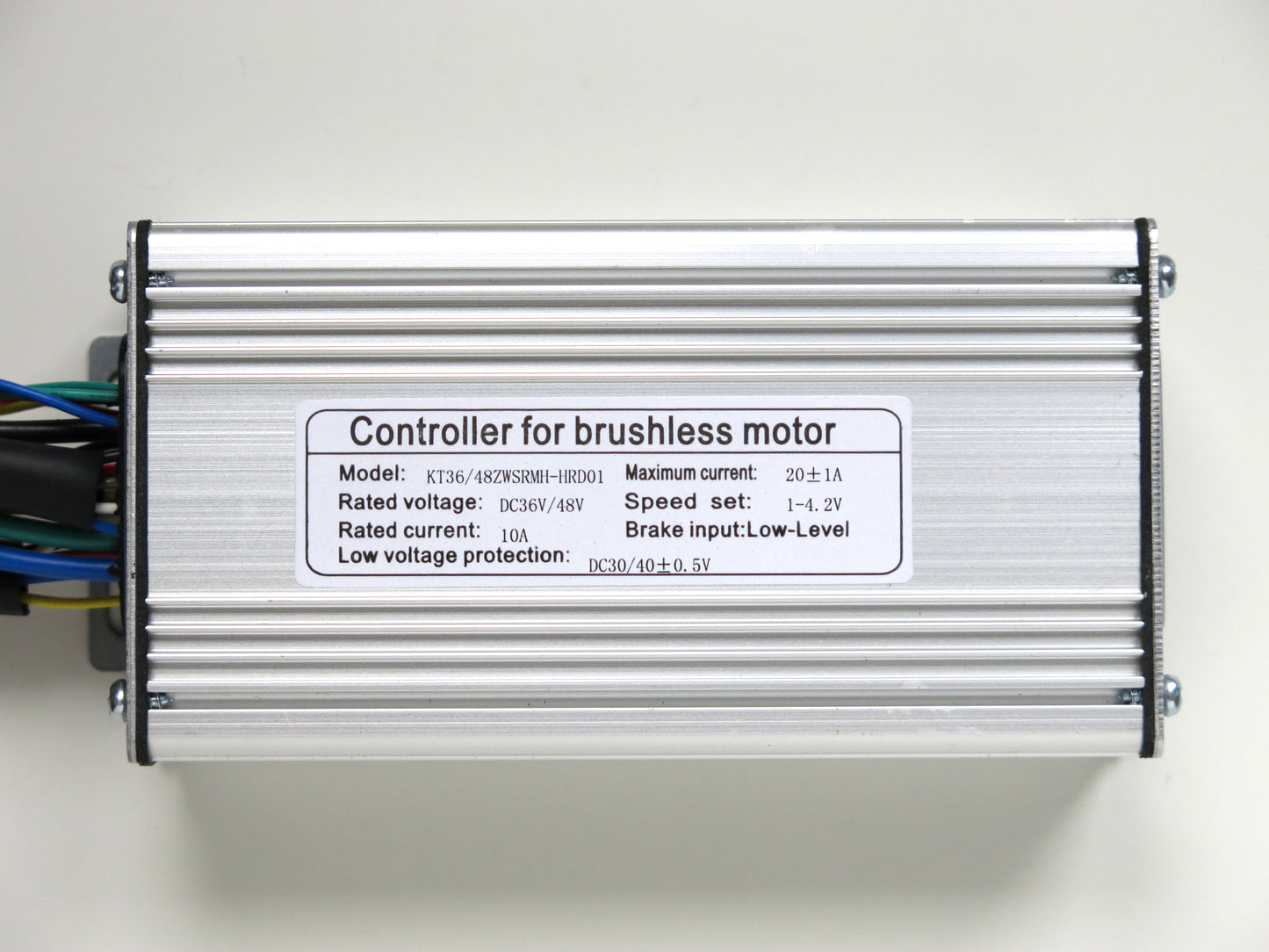

Model: KT36/48ZWSRMH-HRD01
Compatible with KT LCD Displays
Input Voltage: DC 36V or 48V (Universal)
Min. Voltage: DC30V/40±0.5V
Max. Current: 20±1A
Speed set: 1-4.2V
Brake Input: Low-Level
Size: 130x66x38mm
Color: Silver
Weight: 360g
9 pcs MOSFET
Application: Max. 36V/48V 500W
Fits sensorless motor
Advantages:

36V or 48V Universal (supports both voltages)
This controller functions with & without PAS (Pedal Assist Sensor)
Support hydraulic brake sensor or brake sensor connector
Support LED Control Panel or LCD Control Panel
Support 36V or 48V Light Control
Support speed limit to 70%
Support cruise function
Support speaker and LED light
Support regenerative braking function (must use our LCD Display together to activate this function)
