Electric Bike 12 Magnet Easy Fitting Split PAS Pedal Assist Sensor Cadence Speed
Electric Bike 12 Magnet Easy Fitting Split PAS Pedal Assist Sensor Cadence Speed
Regular price
£19.45 GBP
Regular price
£0.00 GBP
Sale price
£19.45 GBP
Unit price
/
per

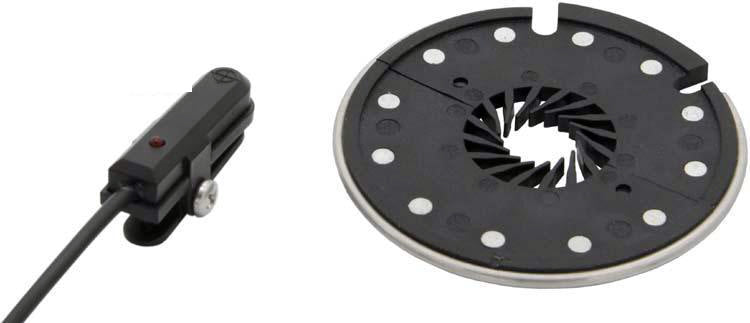

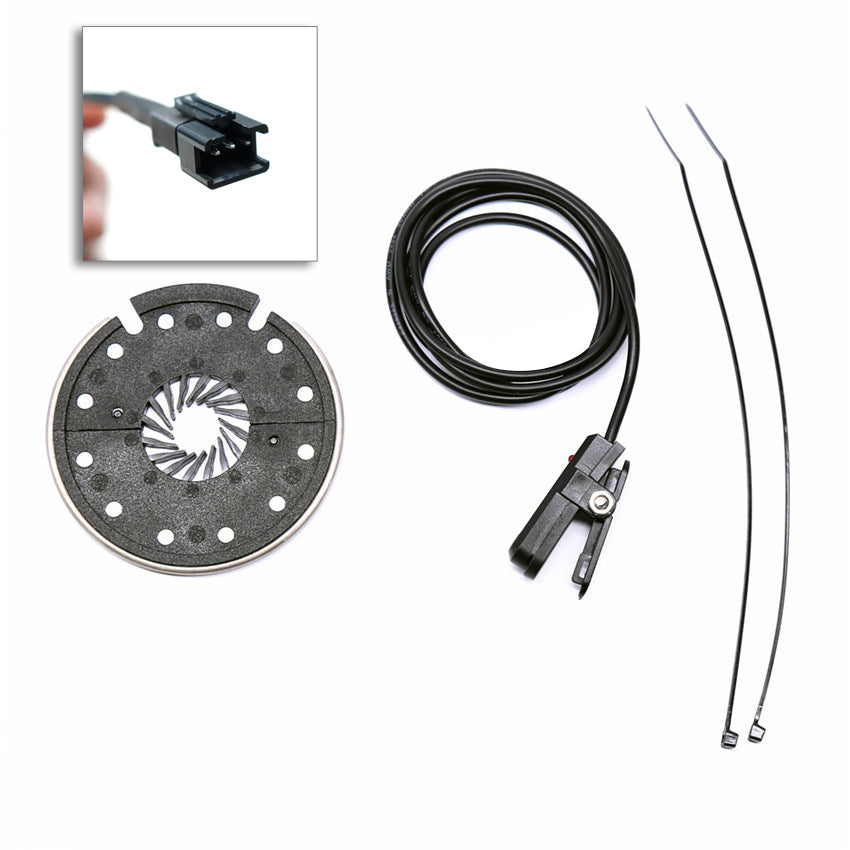

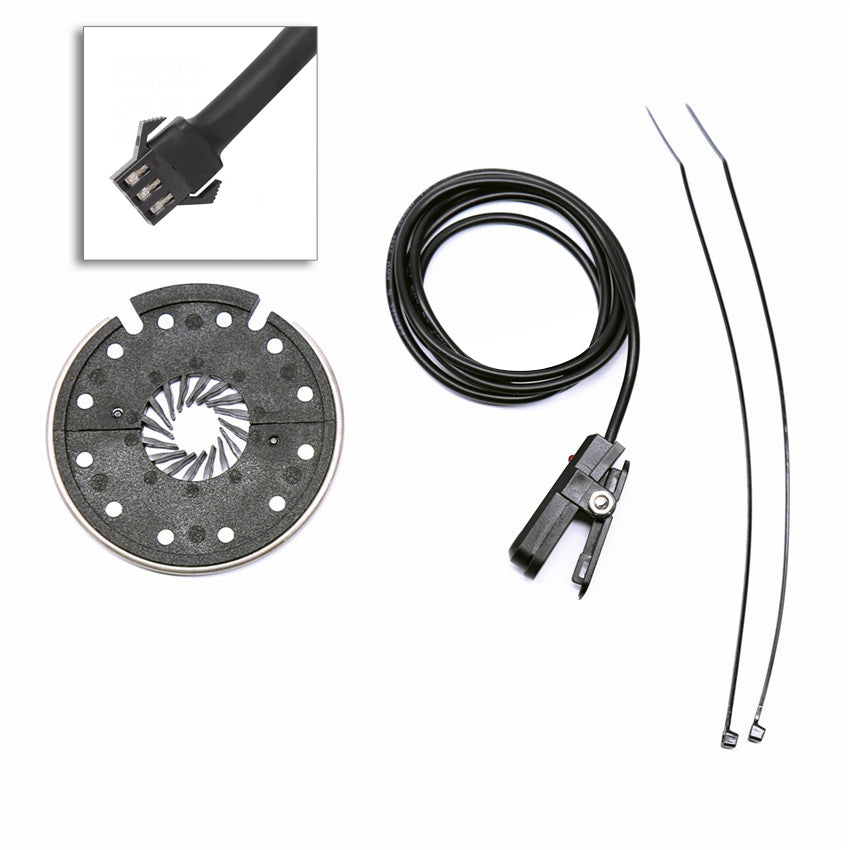

12 magnet split disk, PAS sensor and 2x cable ties.
To fit: Either left or right side bottom bracket (please choose from available selection).
- For fitting to the left side bottom bracket (non-drive side), choose KT-D12L.
- For fitting to the right side bottom bracket (drive side), choose KT-D12R.

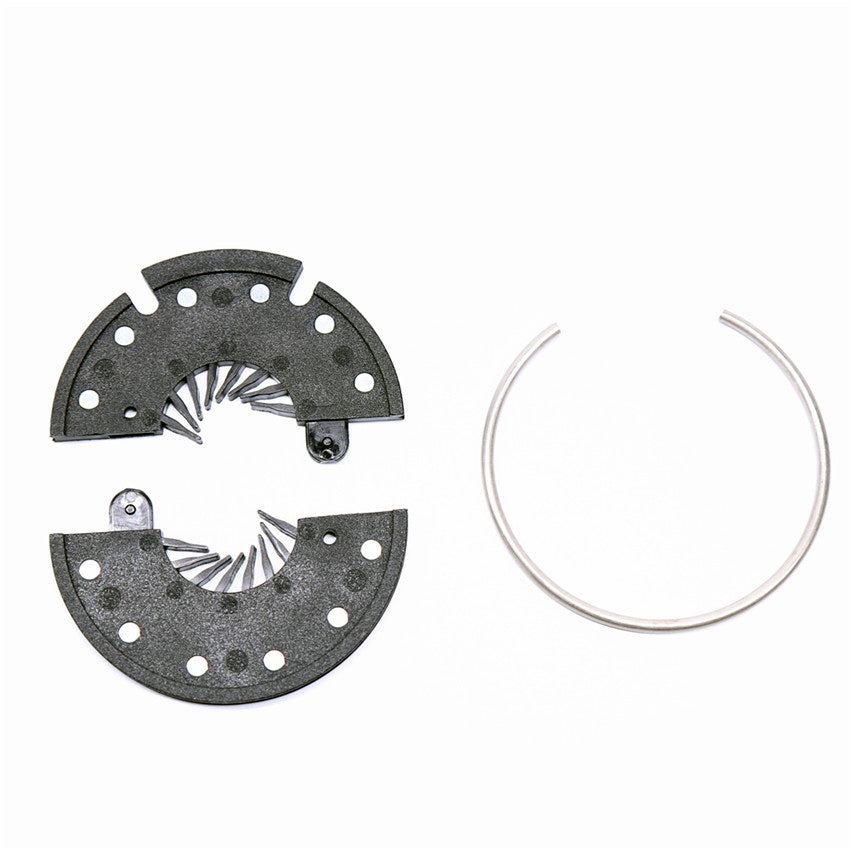

This is an 'easy fitting' split magnet disk that allows fitting without the need to remove your cranks.
This PAS sensor features a 12 magnet disk, giving higher sensor resolution than other disks with fewer magnets. This higher resolution means that less pedal operation is required before pedal assist from the motor starts.

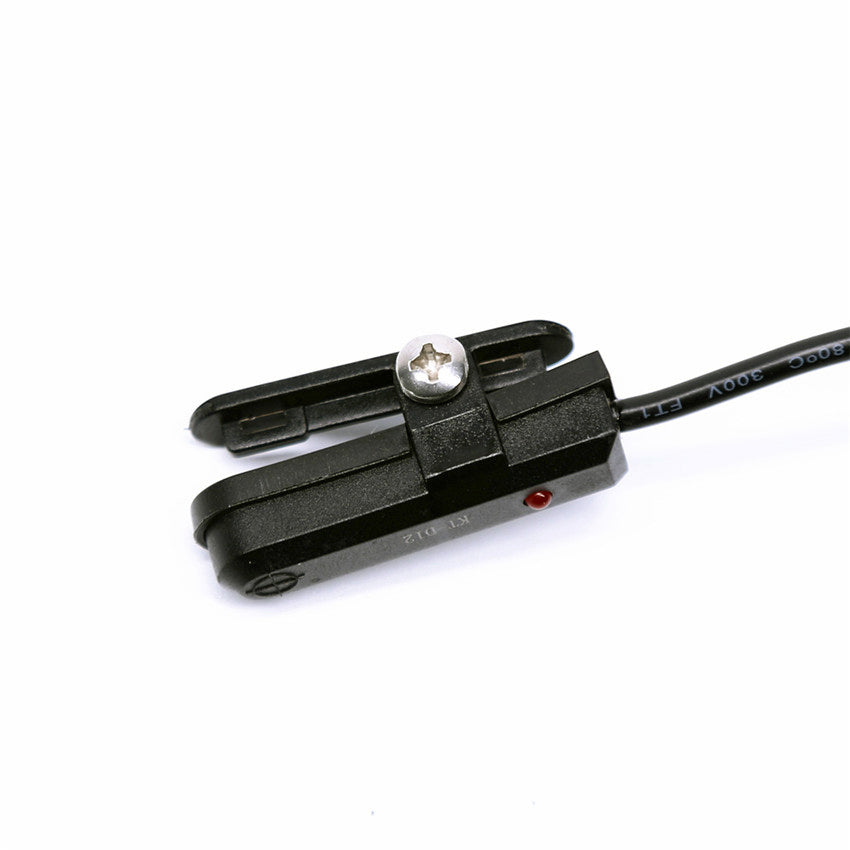

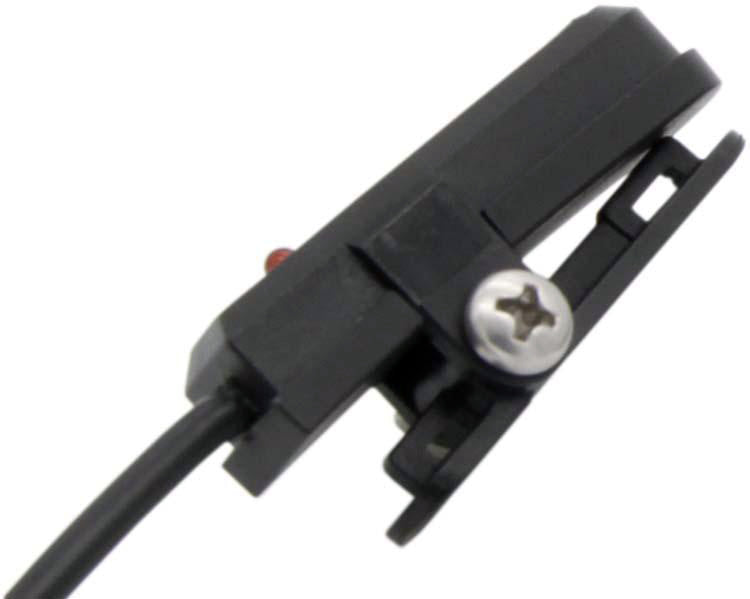

The sensor also features an LED indicator that blinks with each magnet pass, helping to assist install and troubleshooting.
- Number of magnets: 12
- Sensor LED indicator shows magnet pass detection to assist install and troubleshooting.
- Cable length: 100cm
- To fit: Either left or right side bottom bracket (please choose from available selection).
- Disk to sensor distance: <4mm
