Electric Bike 12 Magnet PAS Pedal Assist Sensor Cadence Speed Ebike V12-50

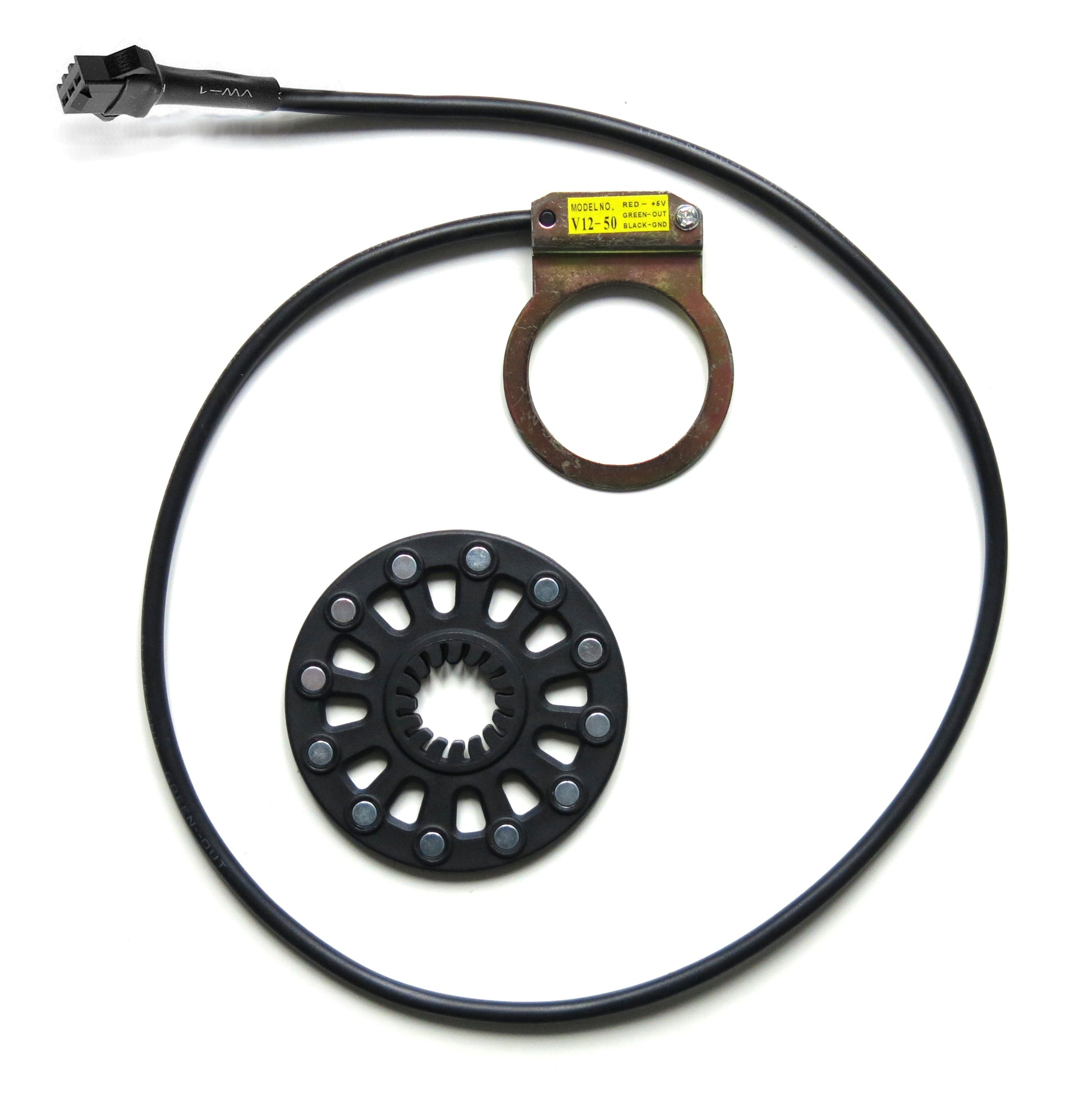

12 magnet disk and PAS sensor.

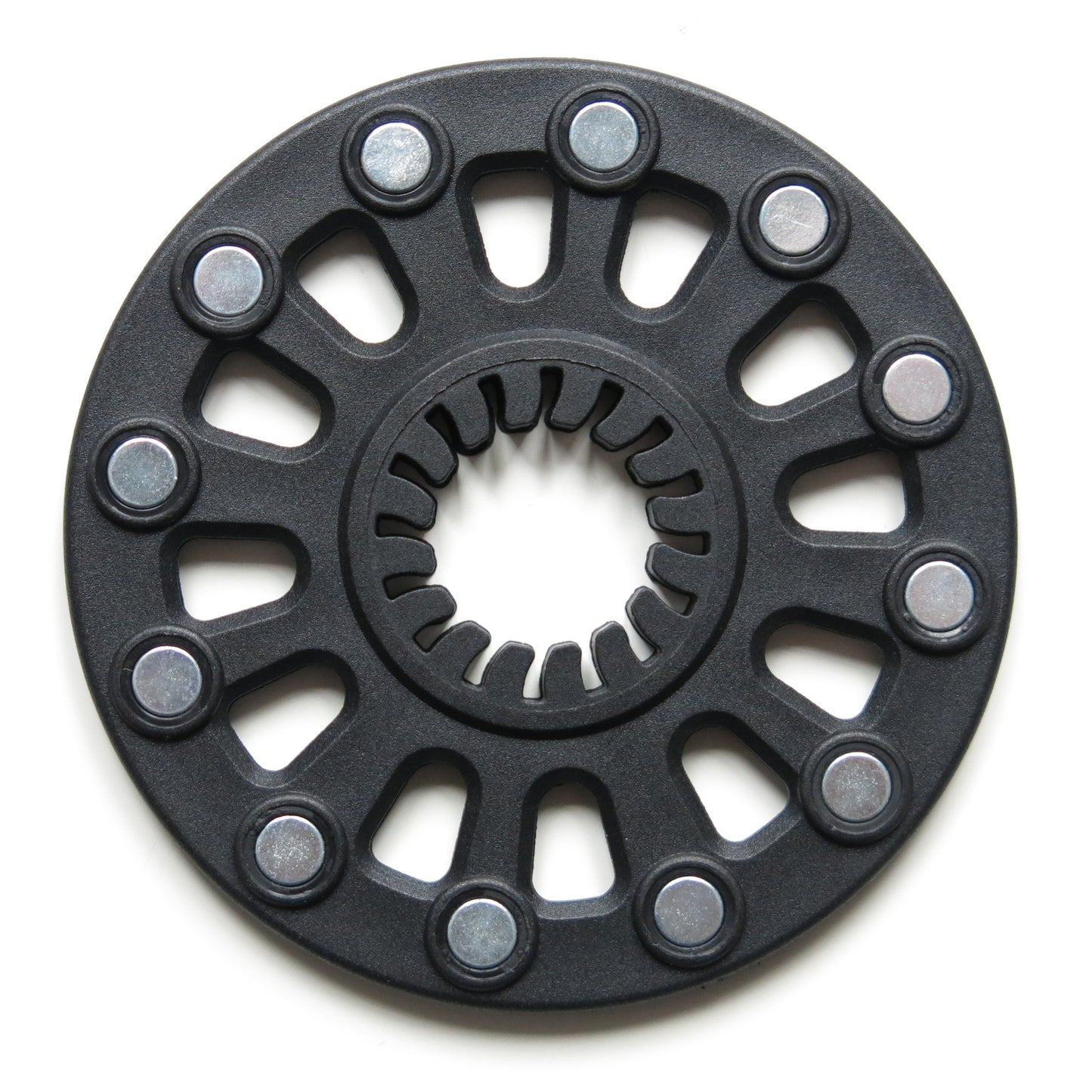

This PAS sensor features a 12 magnet disk, giving higher sensor resolution than other disks with fewer magnets. This higher resolution means that less pedal operation is required before pedal assist from the motor starts.

• Model: V12-50
• Number of magnets: 12
• Cable length: 58cm
• Disk to sensor distance: <3mm

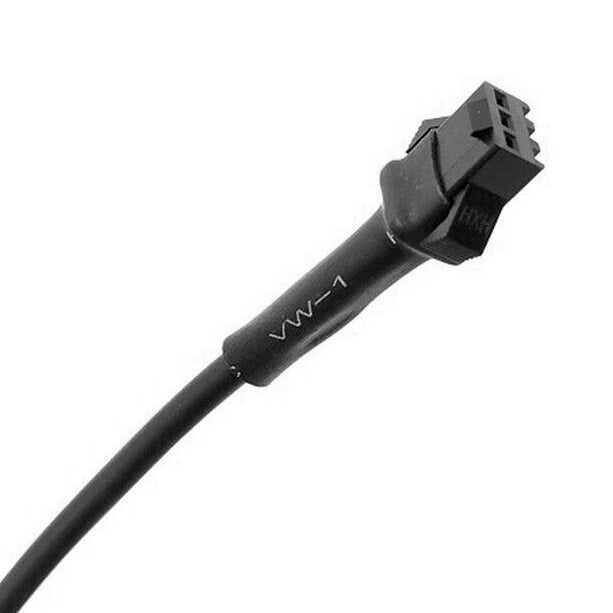

• Connector type: JST-SM 3 pin male.

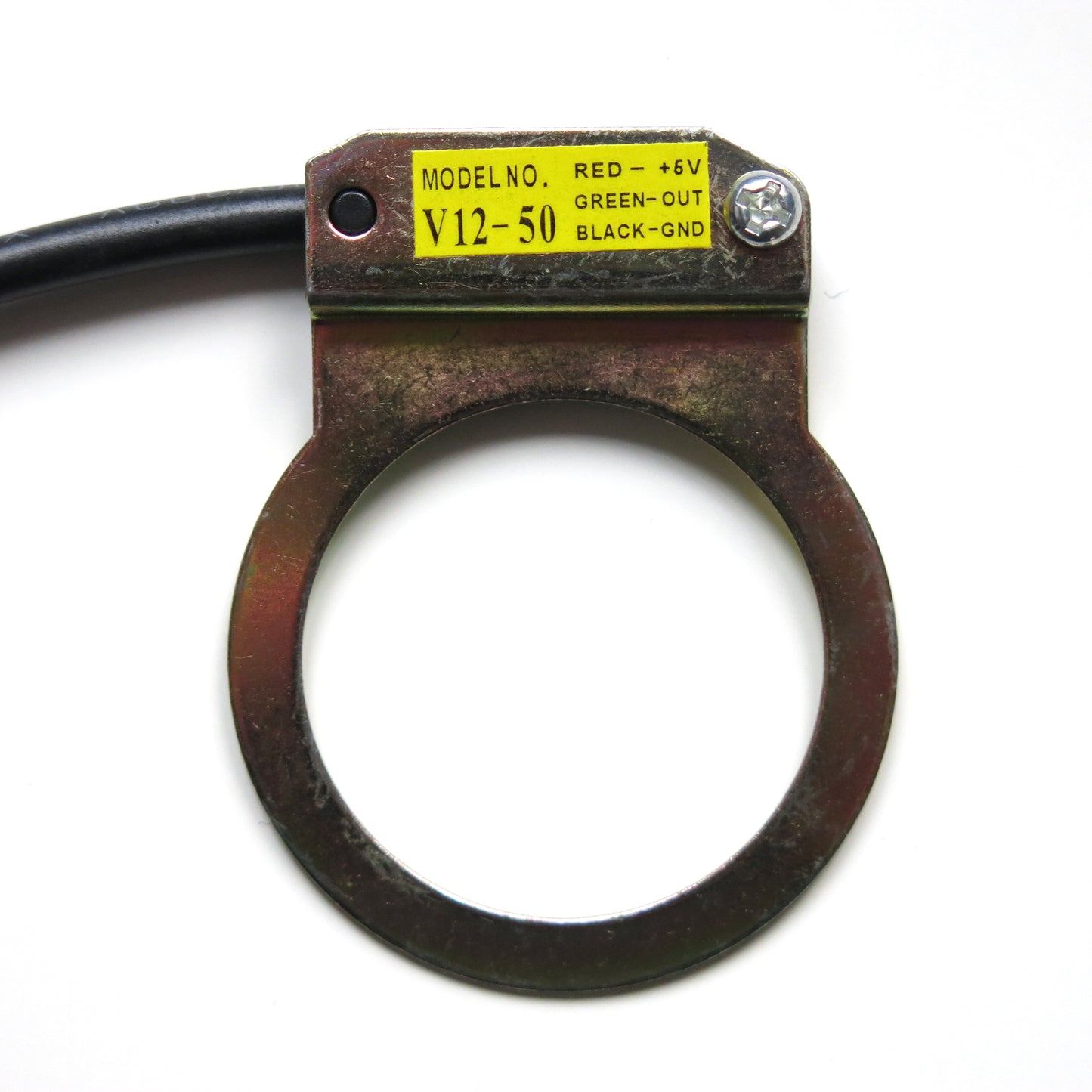

PAS sensor wiring:

• RED - +5V
• GREEN - Signal
• BLACK -GND
