KT-LCD8HU Colour LCD Display Meter Panel for KT Series Controllers 24/36/48V USB

PLEASE NOTE: This LCD display is only compatible with KT series controllers. It will not function with other unsupported controllers.

User Manuals

KT-LCD8H Quick Start Guide

KT-LCD8H User Manual

Description

• Model: KT-LCD8H
• Colour LCD display
• Standard interface: SM-5Y
• 24/36/48V Universal Voltage
• Features 1A USB output for powering external devices

Features

• Colour display.
• Data display：it shows the riding speed, a single mileage and cumulative mileage, riding time, power-
  assist gear, motor power and temperature, battery voltage and charge status, brake status and the used
  ambient temperature and other cycling parameters;
• Intelligent power：a true reflection of the battery charge, real-time recording of the power
  consumption to ensure riding mileage;
• Stalls setting：multi-gear switch and automatic save of the power-assist gear, and it can restore
  power-off stall state when turned on;
• Parameter setting：with a number of user parameter setting functions, motor parameters, velocity
  measurement parameters, speed-limit parameters, power parameters, power-assist control parameters,
  the minimum controller voltage and maximum current parameters and other operating models for
  settings adjustment ;
• Data view：Users can view historical driving data and clear accordingly, view single or cumulative
  riding time, riding mileage, maximum speed and average speed of single riding;
• Vehicle boosting：With 6Km/h power-assisting functions, the boost logo flashes during boosting, and
  riders can use it when driving the vehicle and the vehicle driving is labor-saving and easy;
• Cadence function：In the assistance mode, the display will show the pedal’s Revolutions Per Minute
  (RPM);
• Cruise and constant speed：With the setting and display of the cruise, achieving to automatically
  maintain the vehicle speed, so that the vehicle drives at a constant speed;
• Night driving：With the functions of LCD backlit display and headlight switch control, instrument
  backlighting and headlights can be turned on during driving at night;
• Password setting：With three-bit of power-on password setting;
• Automatically prompt：For the appeared failure of the vehicle, it can prompt different fault codes for
  easy inspection and maintenance of vehicle. With a temperature display for motor operation and it is to
  achieve the ultra-temperature alarm and motor protection;
• Use five-line of digital communication, the instrument has good compatibility and interchangeability,
  different instruments can be conducted the data exchanges and parameters copy directly;
• Host part and operation buttons of the meter use sub-structure design, making the operation to be
  more reasonable and convenient;
• Supply voltage of 24V, 36V, 48V can be automatically identified and compatible;


Package includes:

1x KT-LCD8H display meter
1x Control pad buttons
1x Cable
1x Mounting bracket
1x Quick start user manual

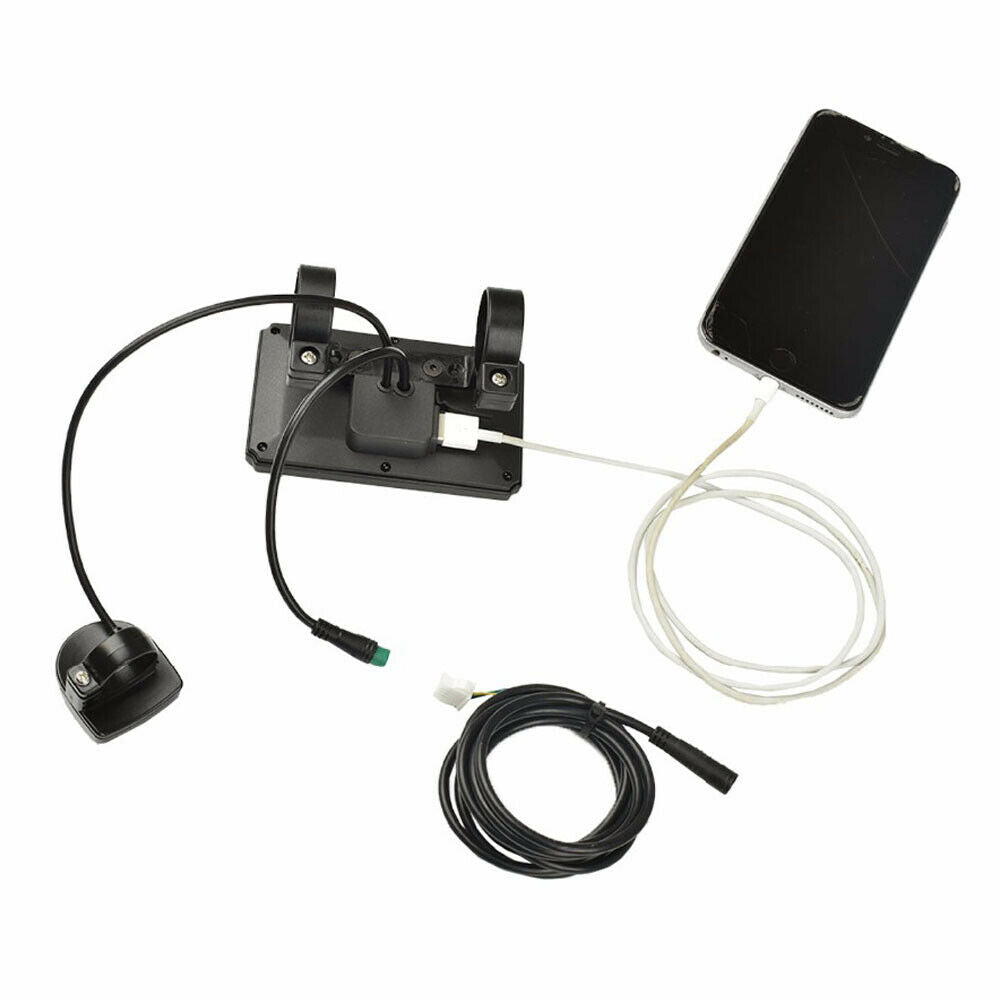

*Phone not included
