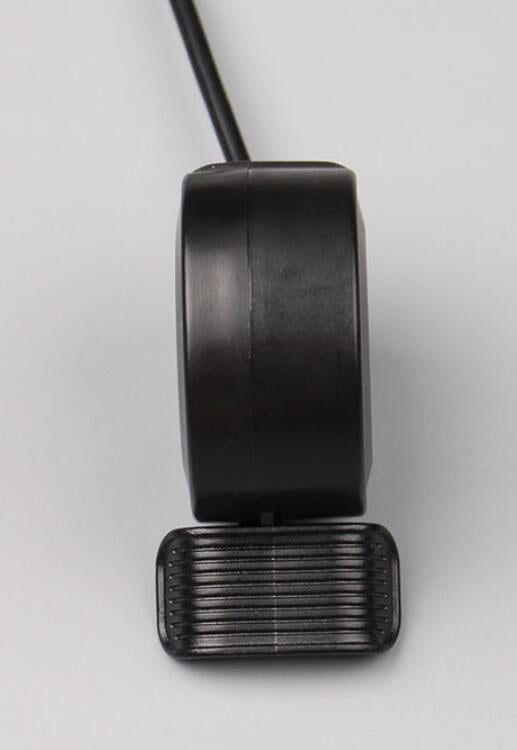

Wuxing Thumb Throttle Both Ways Right or Left Hand Electric Bike Ebike Scooter

Wuxing thumb throttle.

• Throttle Voltage: Works With any Voltage ( 24V 36V 48V 60V  72V etc.)
• Cable Length: 2000mm

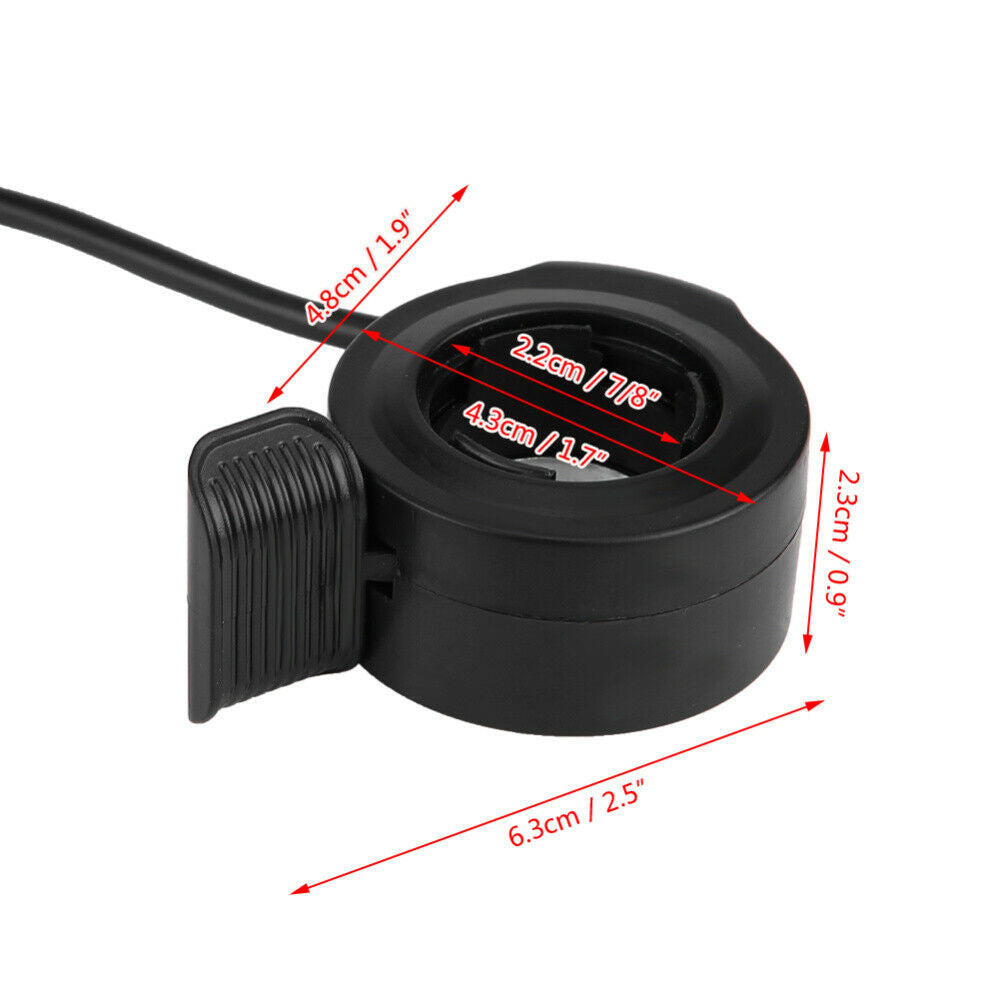

• Throttle Size: For 22mm diameter handlebar
• Function: Right or left hand thumb throttle
• Install: Right & left hand

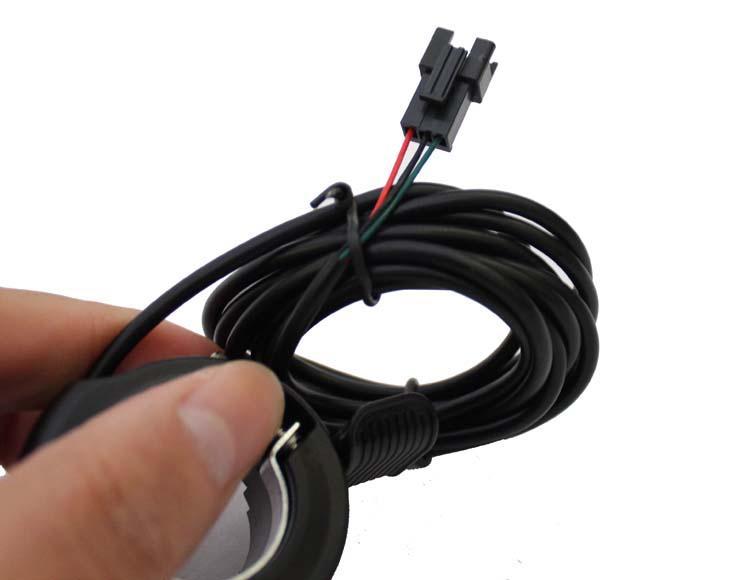

• Connector: JST-SM 3-pin male (included)

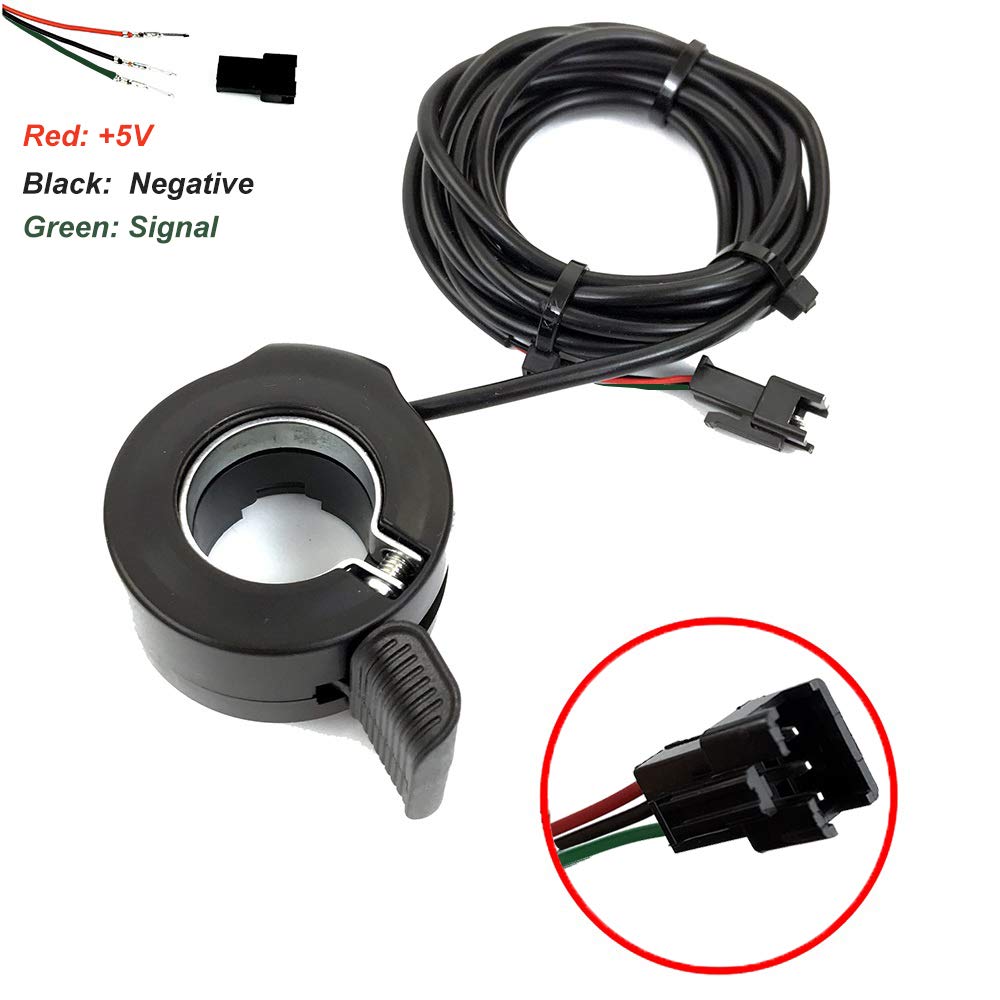

Throttle wiring diagram:

• red = +5 Volt INPUT
• black = GROUND
• green = SIGNAL Output  (back to the controller to tell it the chosen speed)
